Control Units

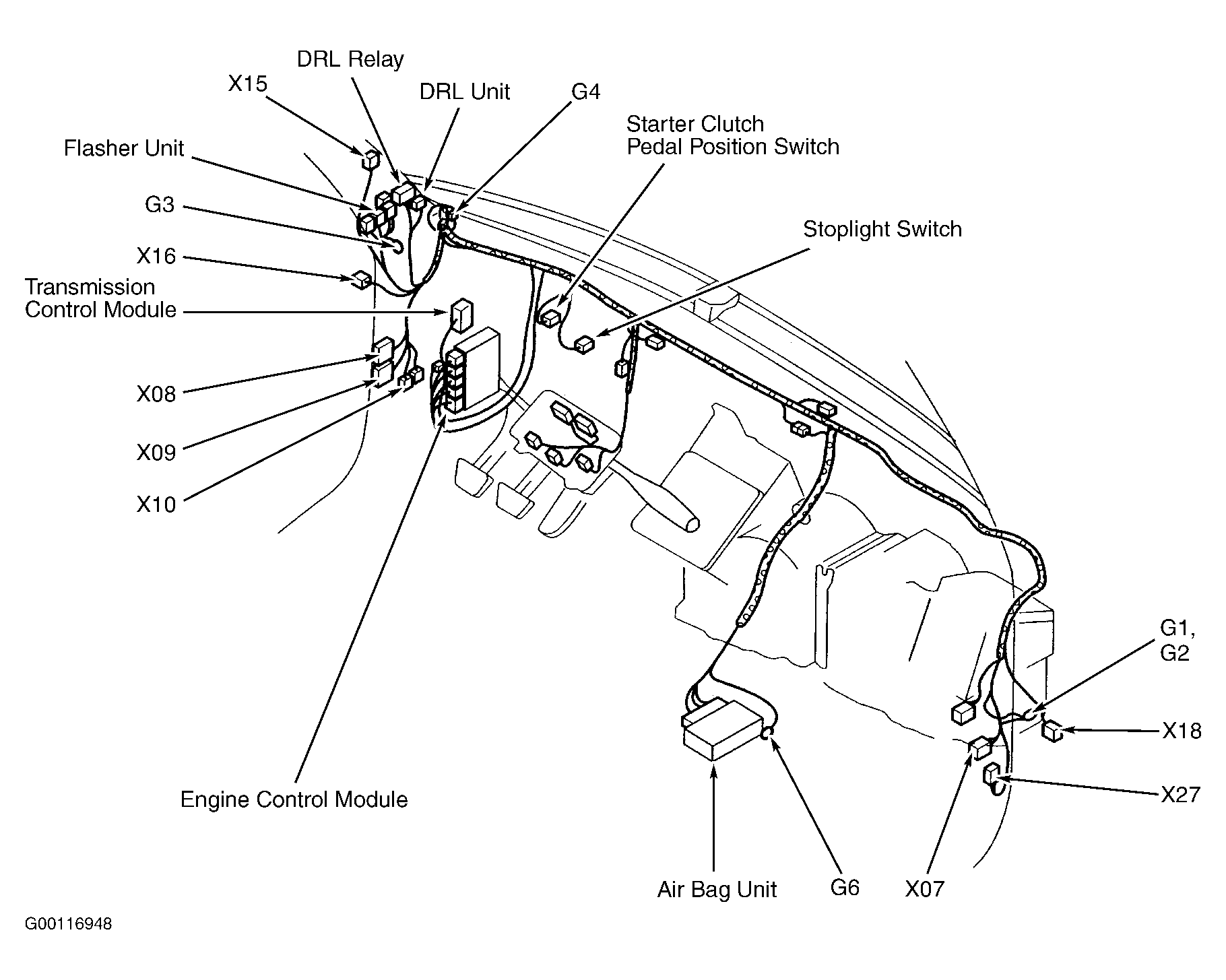

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Unit | At left rear of engine compartment. |
| Air Bag Unit | Under front of center floor console. See Figure. |
| DRL Unit | Behind left end of dash. See Figure. |
| Engine Control Module | Behind left kick panel. See Figure. |
| Flasher Unit | Behind left end of dash. See Figure. |
| Shift Lock Unit | At base of selector lever. |
| Sound Warning Unit | Behind left end of dash. |
| Transmission Control Module | Behind left kick panel. See Figure. |
