Steering Column: Component

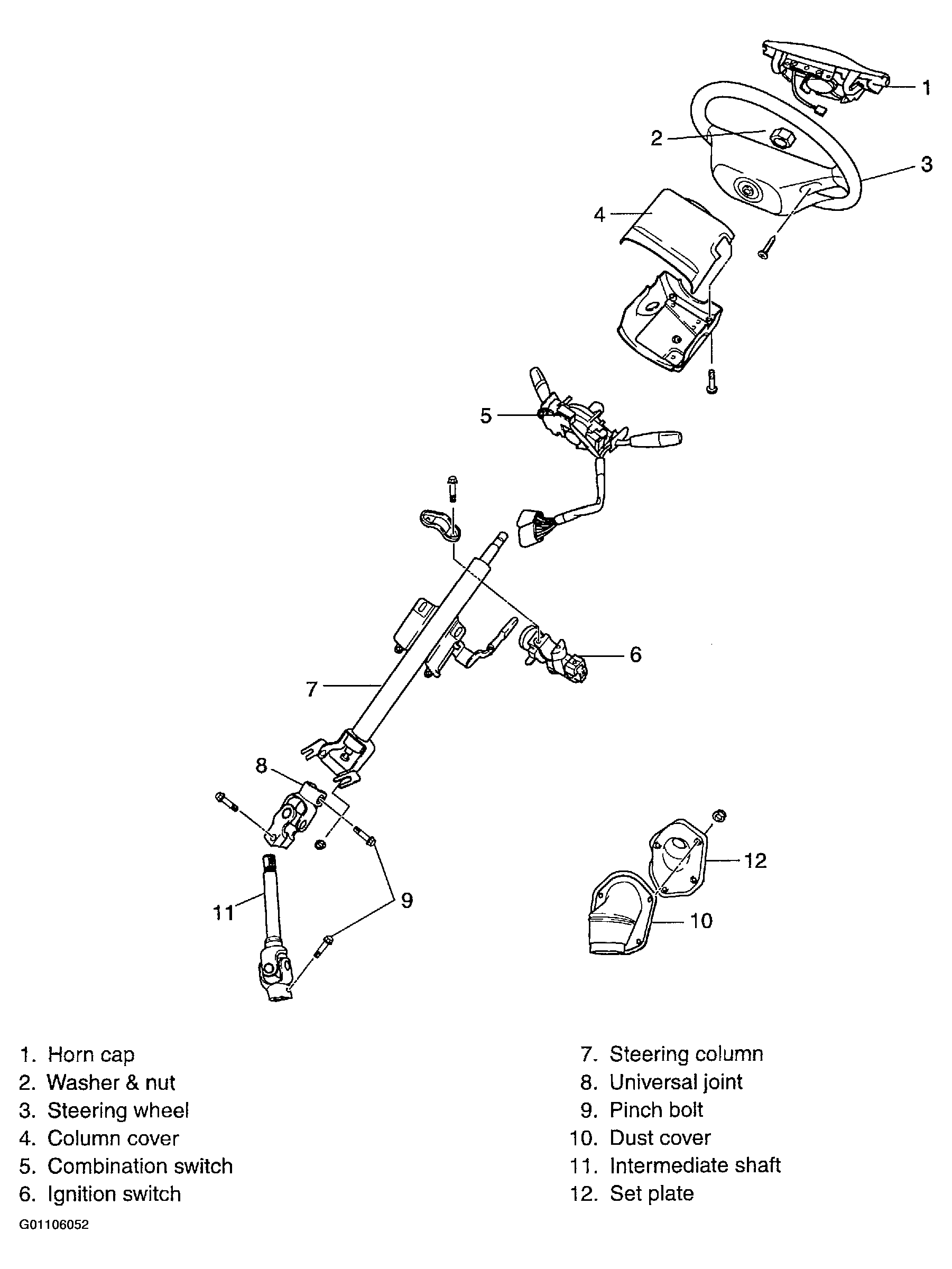

Fig 1: Illustrating Steering Column Components

G01106052

Courtesy of KIA MOTORS AMERICA, INC.
