Jacking & Hoisting

NOTE: Jack points may be used for either floor jack or two-post hoist. When using hoist, use jack points on both sides.

Two jack points exist on each side of vehicle. See Fig 1 . Front jack points are located at outboard end of transmission crossmember on the frame. Rear jack points are located at lower control arm bracket on the frame.

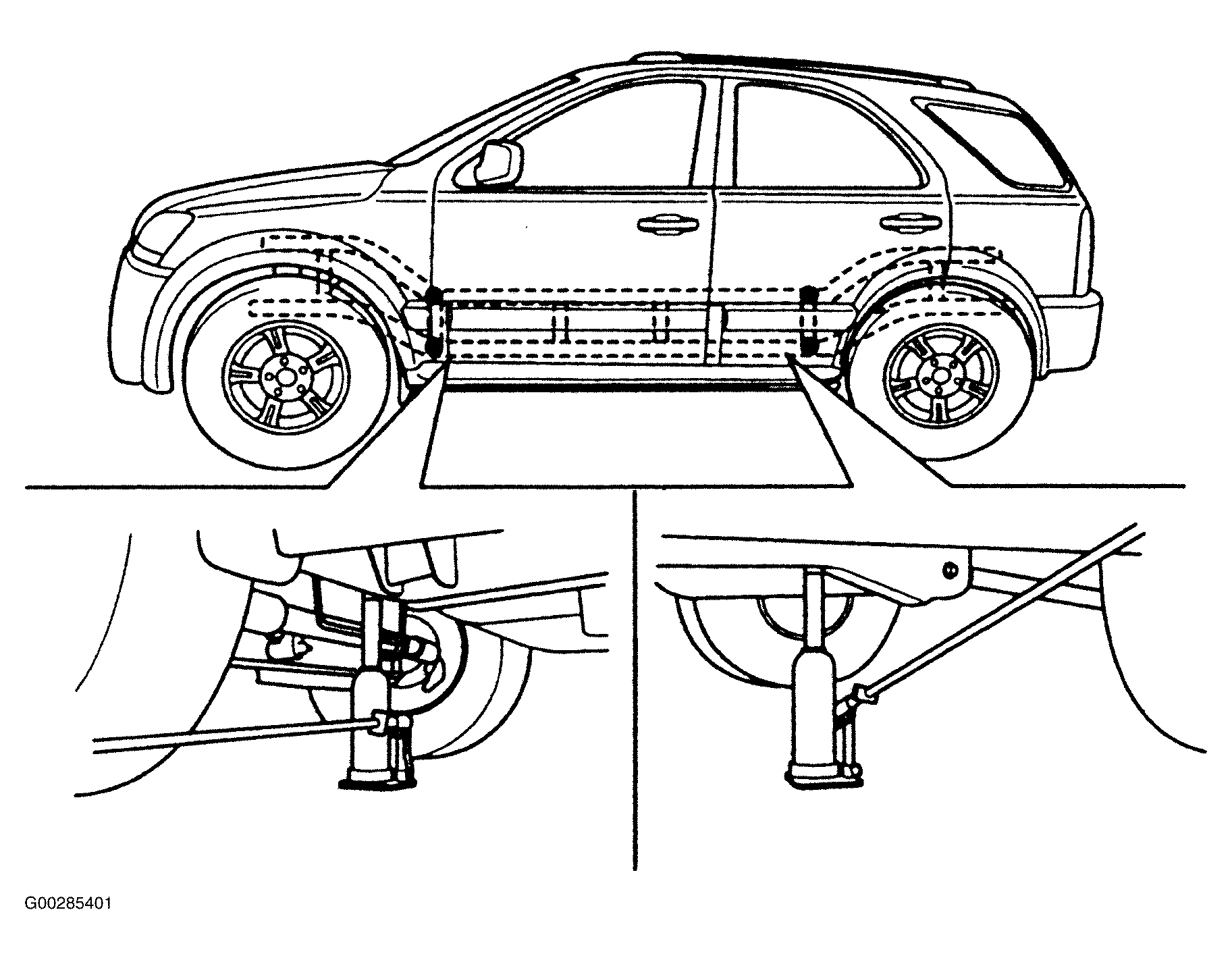

Fig 1: Identifying Floor Jack & Hoist Lift Points

Courtesy of KIA MOTORS AMERICA, INC.
