Adjustment Procedure

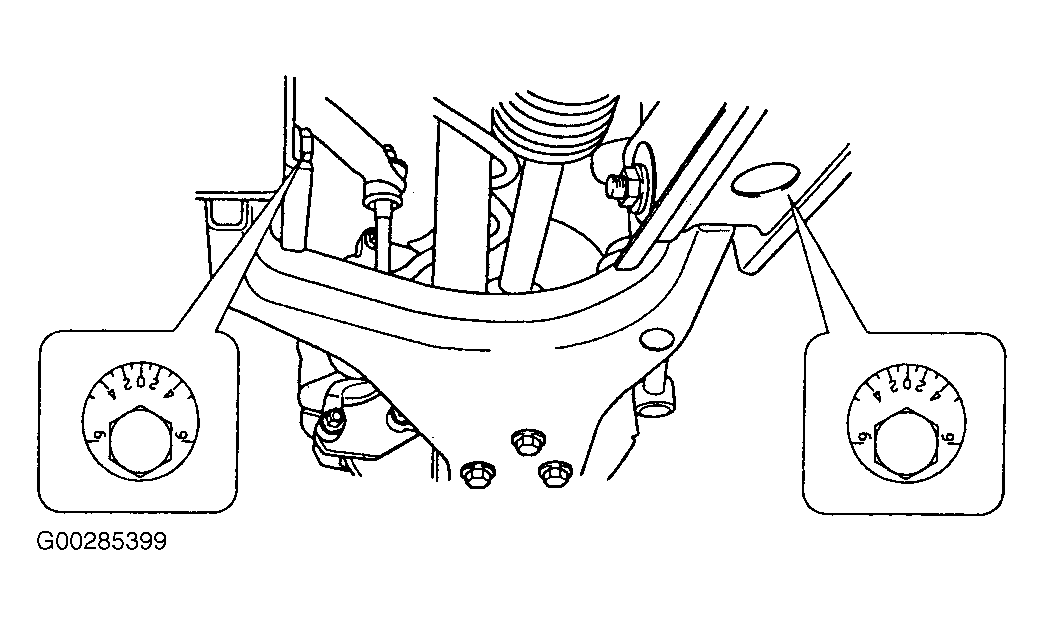

  1. Turn the front spindle clockwise so that the number "1" mark is aligned with the vertical line on the spindle bracket. See Figure .
  2. Turn the rear spindle clockwise so that the number "1" mark is aligned with the vertical line on the spindle bracket. Each numerical point indicated on the spindle increases the caster by 0.23 degrees when turned to the vertical line on the spindle bracket. After adjustment is complete. compare measurement with manufacturer's specification. See WHEEL ALIGNMENT SPECIFICATIONS  table.
  3. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .
