Toe-In Adjustment: Inspection

  1. Position the vehicle on level ground and place the front wheels in a straight-ahead position within +/-5 degrees. Measure the toe-in dimensions "A" and "B" of front wheels with a standard toe-in gauge. Compare measurements with manufacturer's specifications. See WHEEL ALIGNMENT SPECIFICATIONS  table.
  2. If measurements are within specification, no adjustment is necessary. If measurements are not within specification, see ADJUSTMENT PROCEDURE  .

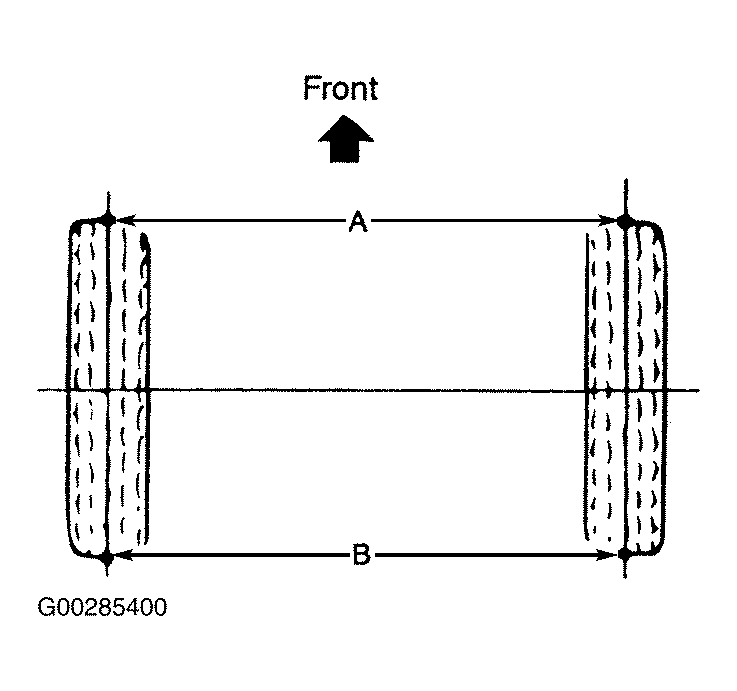

Fig 1: Measuring Toe-In
G00285400Courtesy of KIA MOTORS AMERICA, INC.
