Stator Inspection

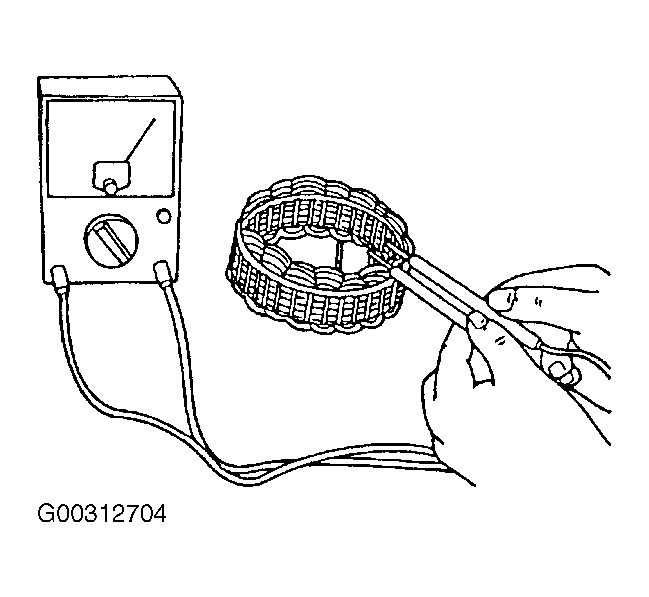

Check for continuity between stator coil leads with a circuit tester. See Fig 1 .

Fig 1: Checking Continuity Between Stator Coil Leads
Courtesy of KIA MOTORS AMERICA, INC.
Replace stator if there is no continuity.

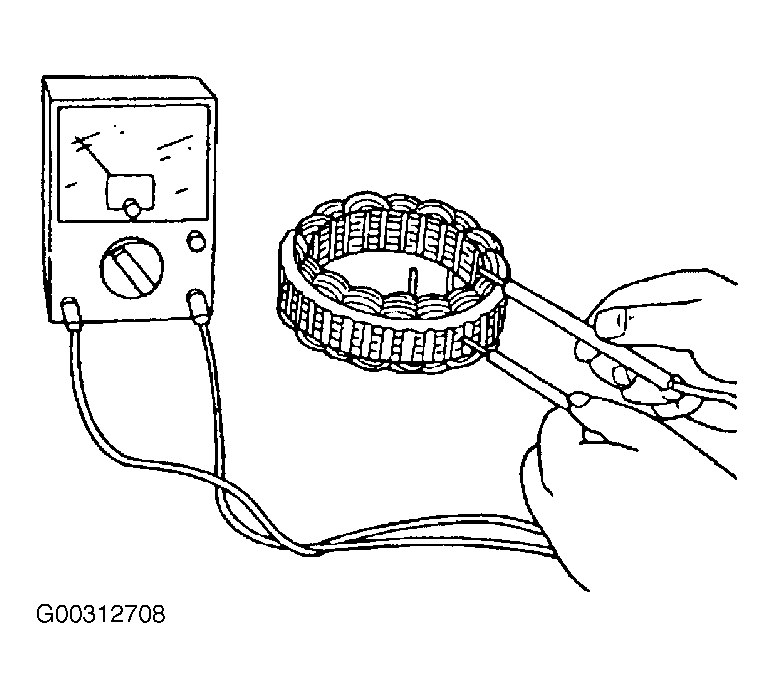

Check for continuity between stator coil leads and core with a circuit tester. See Fig 2 .

Fig 2: Checking Continuity Between Stator Coil Leads
Courtesy of KIA MOTORS AMERICA, INC.
place stator if there is continuity.
