ECM Location & Connectors Identification

Engine Control Module (ECM) is located, behind the left side kick trim panel on driver side. See Fig 1 and Fig 2 .

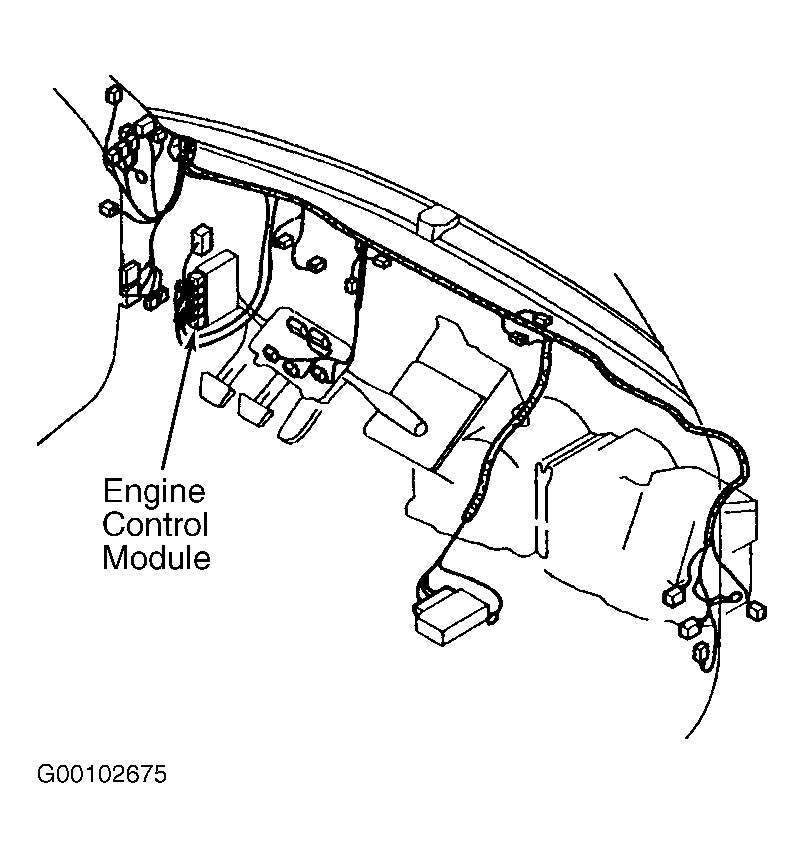

Fig 1: Locating Engine Control Module

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Engine Control Module Connectors & Terminals

Courtesy of KIA MOTORS AMERICA, INC.
