Ignition Coil: Inspection

Connect the negative (-) terminal of 3V power supply to terminal No. 2 of the power transistor; then check whether there is continuity between terminal No. 3 and terminal No. 2 when terminal No. 1 and positive (+) terminal are connected and disconnected.

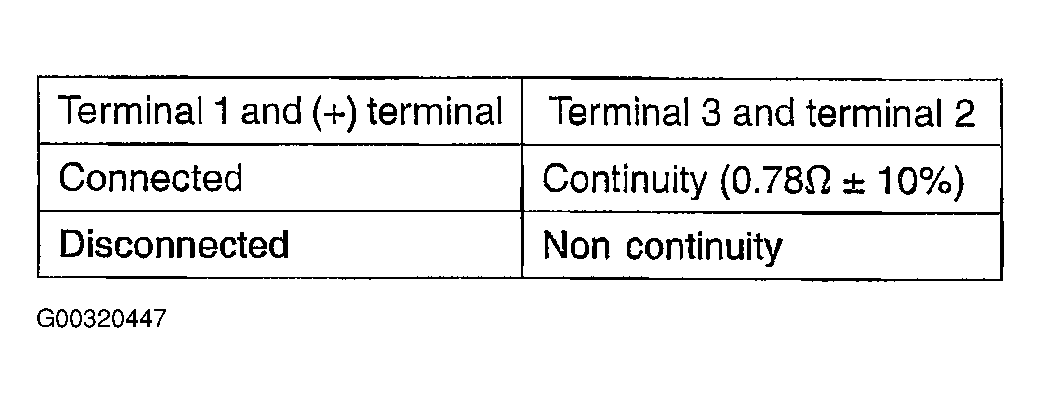

Fig 1: Primary Coil Resistance Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Replace the ignition coil if there is malfunction.

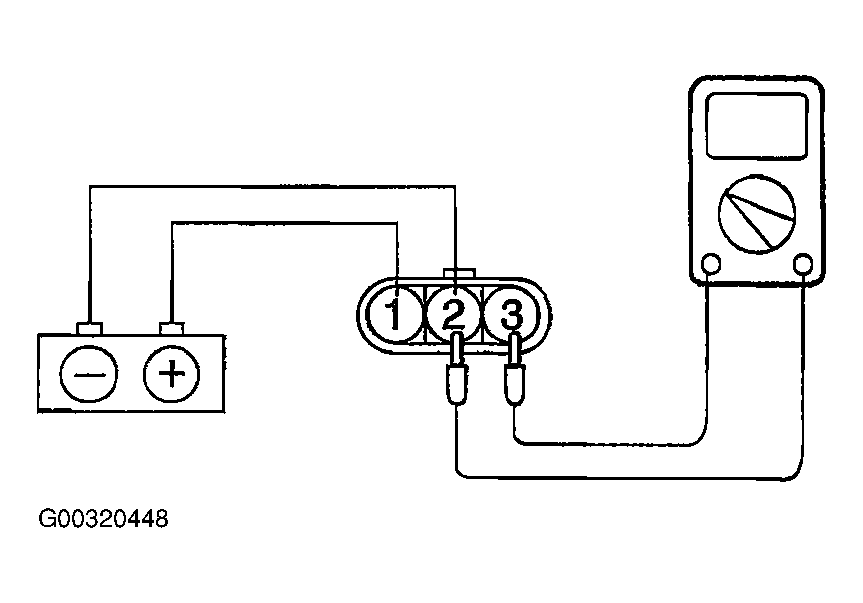

Fig 2: Measuring Primary Coil Resistance

Courtesy of KIA MOTORS AMERICA, INC.

Measure the resistance between the high-voltage terminals of the ignition coil.

Standard value : 13.0 +/- 2.6 (Kohm)

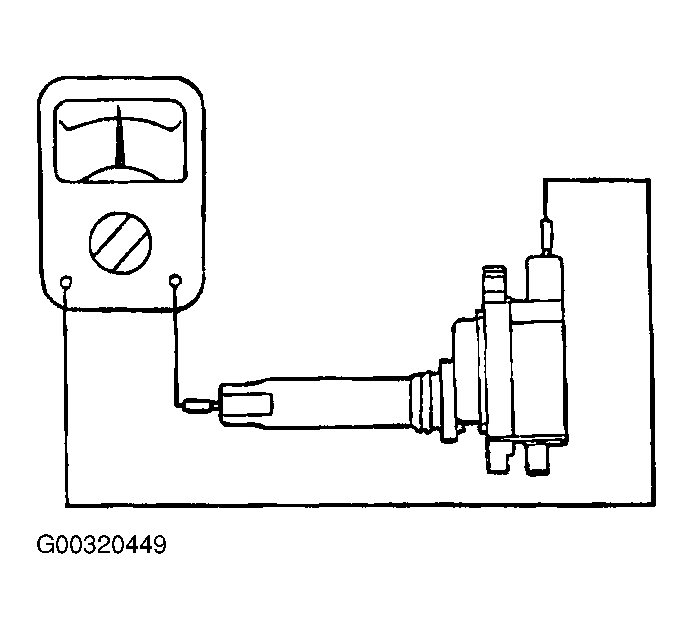

Fig 3: Measuring Secondary Coil Resistance

Courtesy of KIA MOTORS AMERICA, INC.
