Schematic Drawing

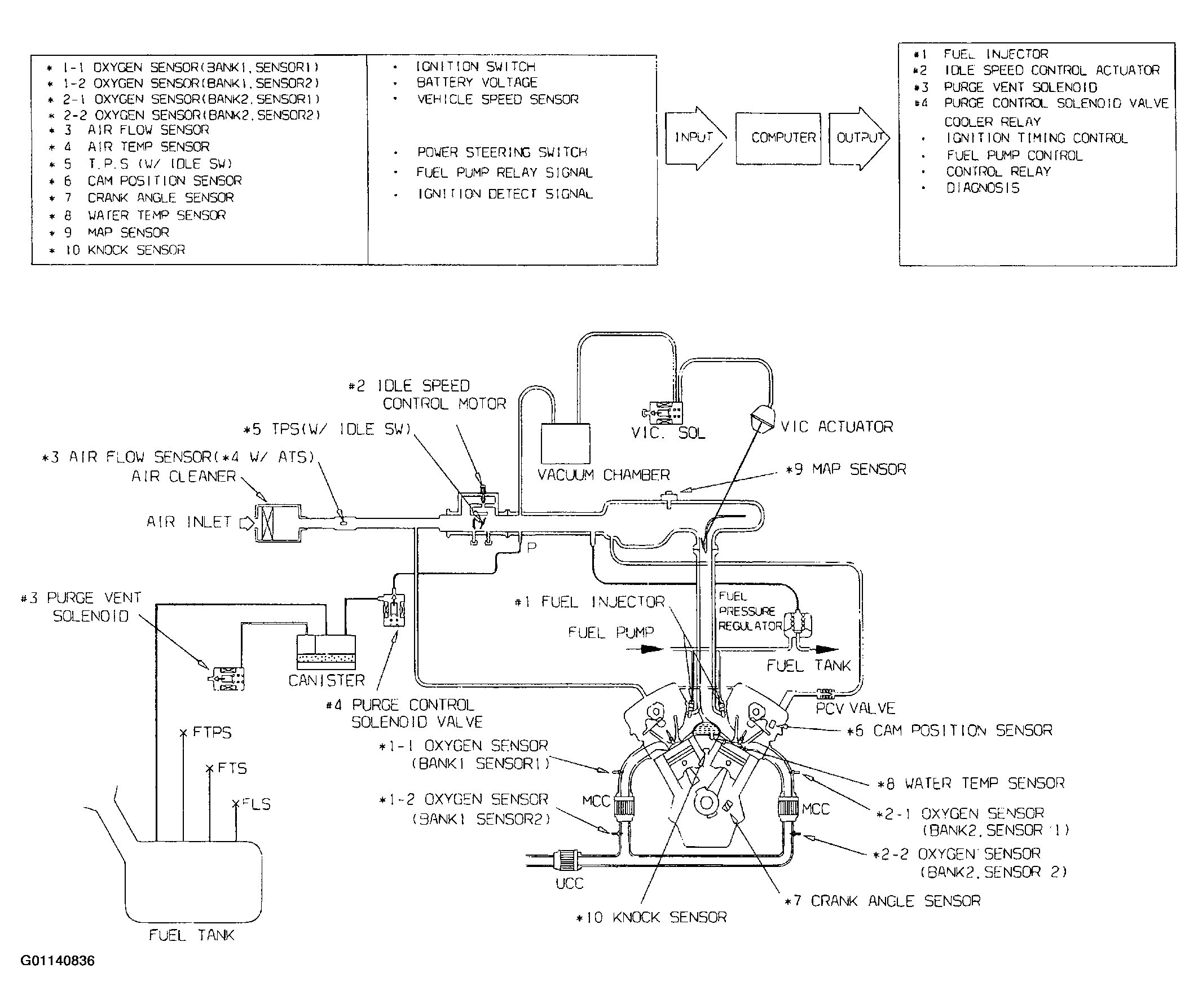

Fig 1: Engine Control Sensor Schematic
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
