Fuel Delivery System: Components: Components

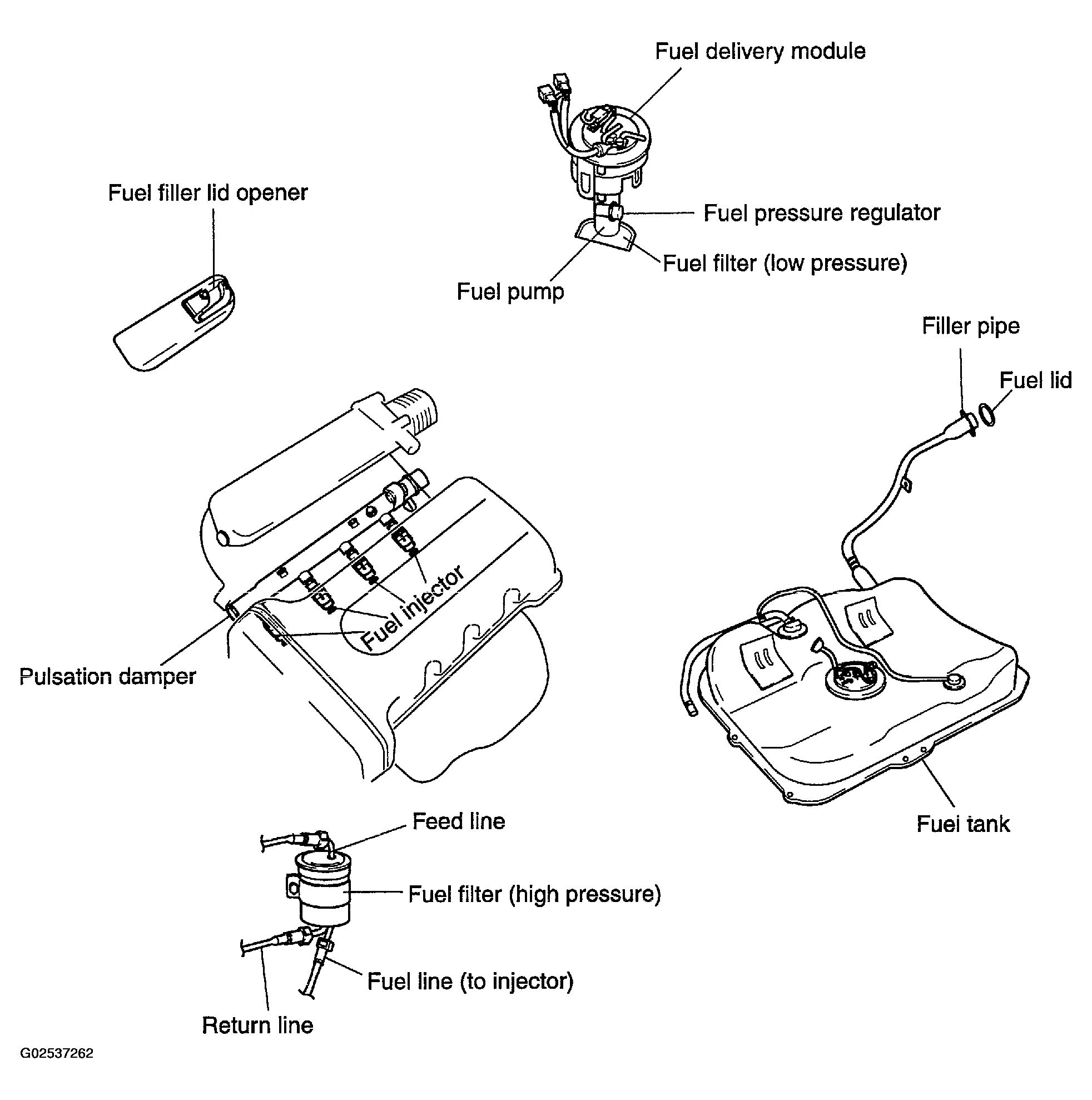

Fig 1: Illustrating Fuel Systems Components
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Illustrating Fuel Systems Component Locations
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
