Complete Control Valve Body Assembly: Reassembly: Notes

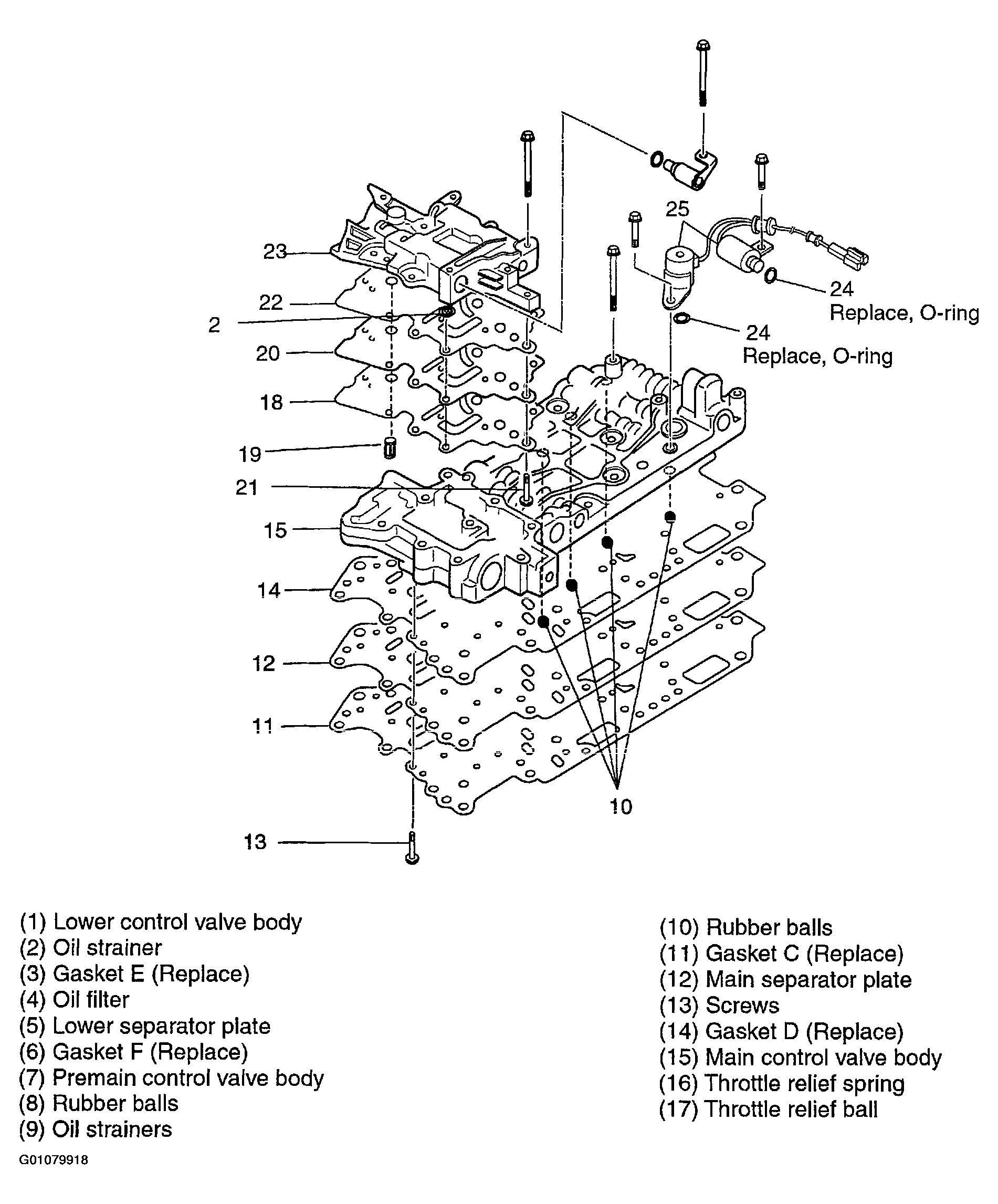

Fig 1: Illustrating Control Valve Body Components (1 Of 2)
G01079918Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Illustrating Control Valve Body Components (2 Of 2)
G01079919Courtesy of KIA MOTORS AMERICA, INC.
