Charging Systems: General: Generator: Inspection: Brush

If brushes are worn to, or beyond limit, replace them.

Standard: 0.85 in (21.5 mm)

Minimum: 0.32 in (8.0 mm)

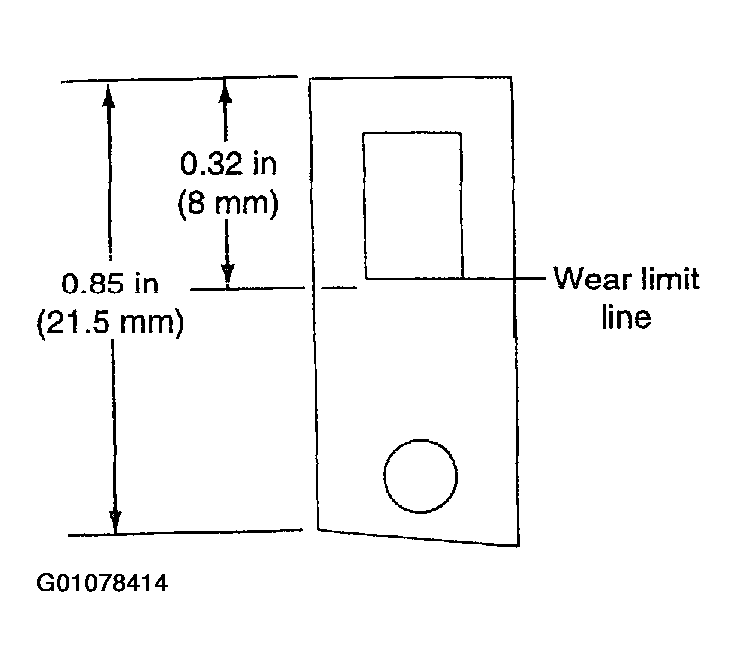

Fig 1: Measuring Brush Wear

Courtesy of KIA MOTORS AMERICA, INC.
