Charging Systems: General: Generator: Inspection: Stator

Check for continuity between stator coil leads with a circuit tester.
Replace stator if there is no continuity.

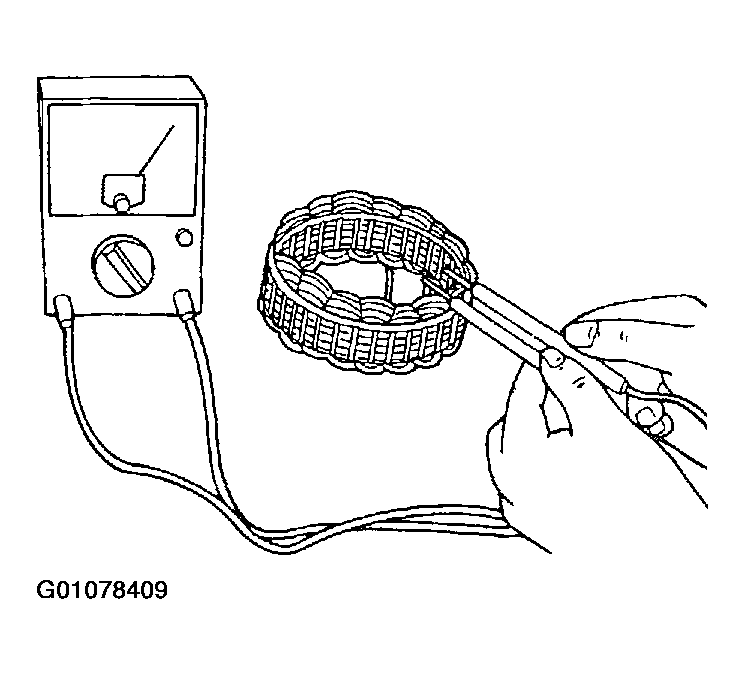

Fig 1: Checking For Continuity Between Stator Coil Leads (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

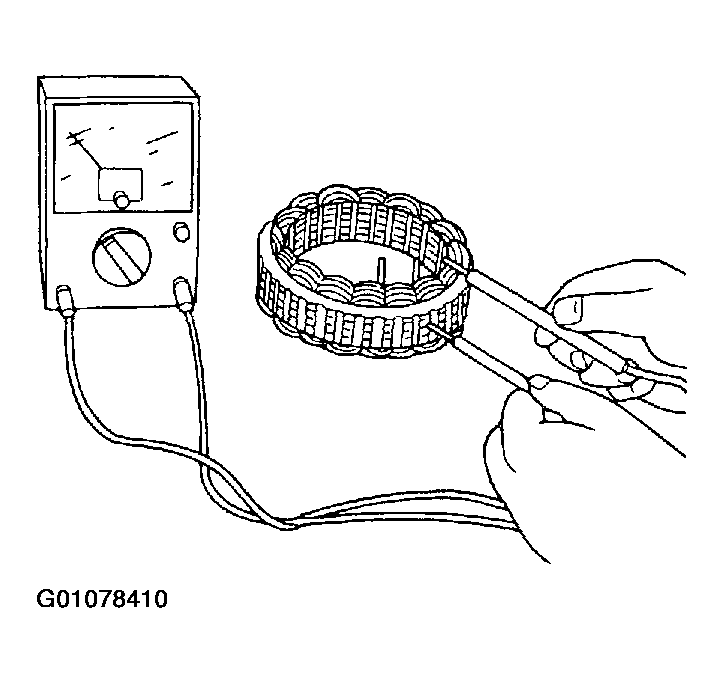

Fig 2: Checking For Continuity Between Stator Coil Leads (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between stator coil leads and core with a circuit tester.
Replace stator if there is continuity.
