Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

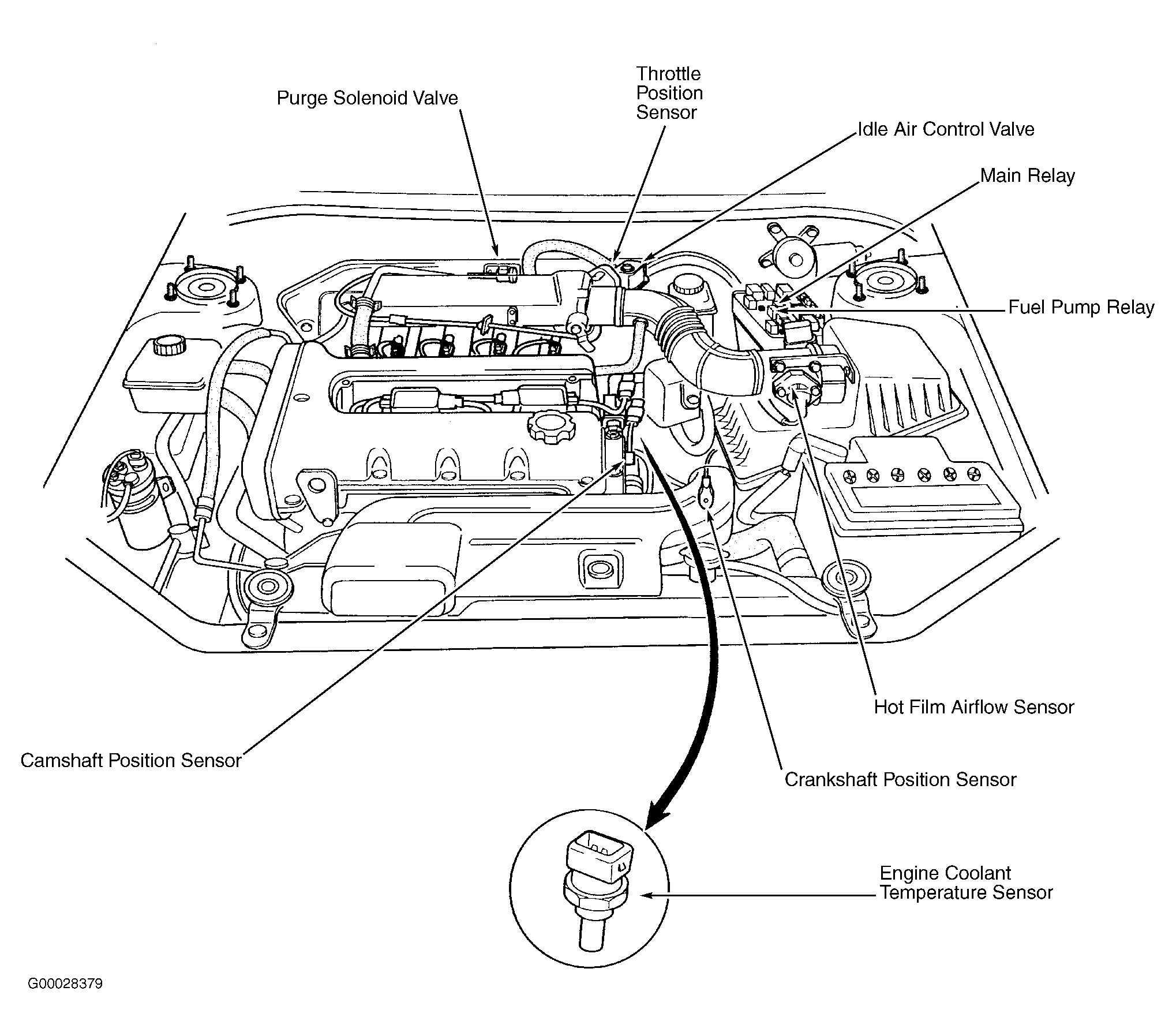

Fig 1: Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Dash

Courtesy of KIA MOTORS AMERICA, INC.

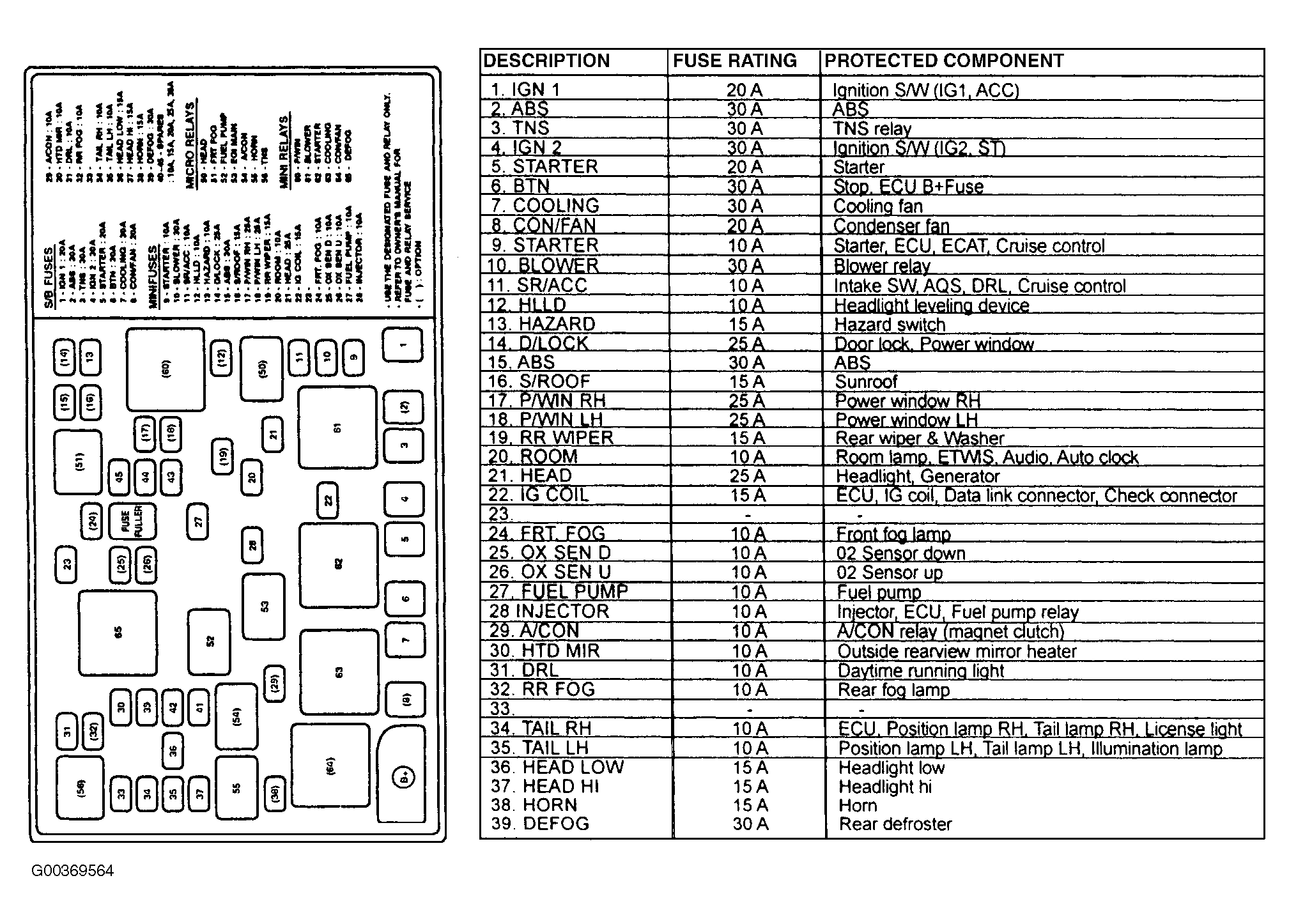

Fig 3: Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.
