Field Coil Test

Using ohmmeter, check for continuity between "M" terminal wire and brushes. See Fig 1 . If continuity does not exist, replace yoke assembly. Check for continuity between "M" terminal wire and yoke. See Fig 2 . If continuity exists, replace yoke assembly. Check field coil for looseness. If field coil is loose, replace field coil assembly.

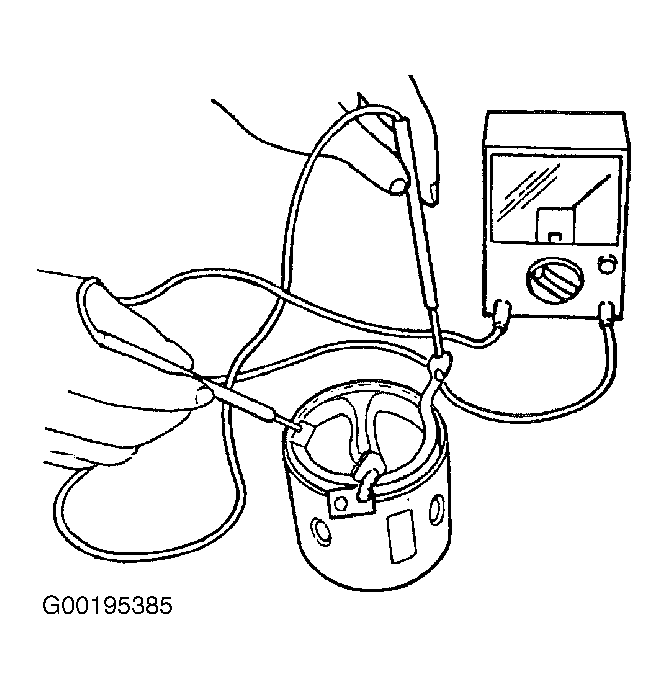

Fig 1: Checking "M" Terminal To Brush Continuity

Courtesy of KIA MOTORS AMERICA, INC.

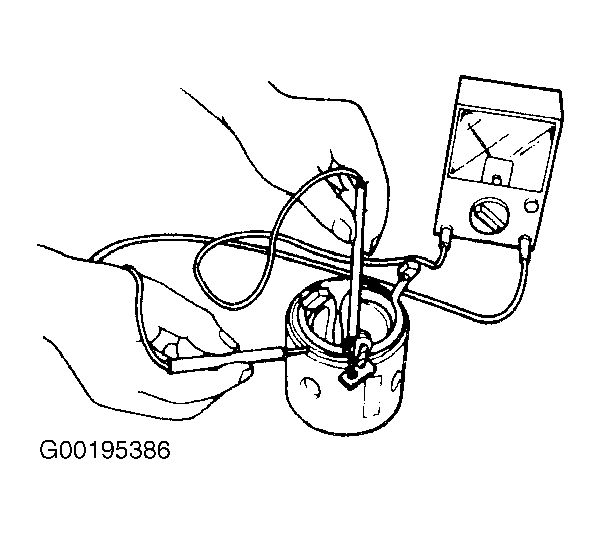

Fig 2: Checking "M" Terminal To Field Coil Continuity

Courtesy of KIA MOTORS AMERICA, INC.
