Fuel Leakage Test
- Remove injectors together with fuel rail.

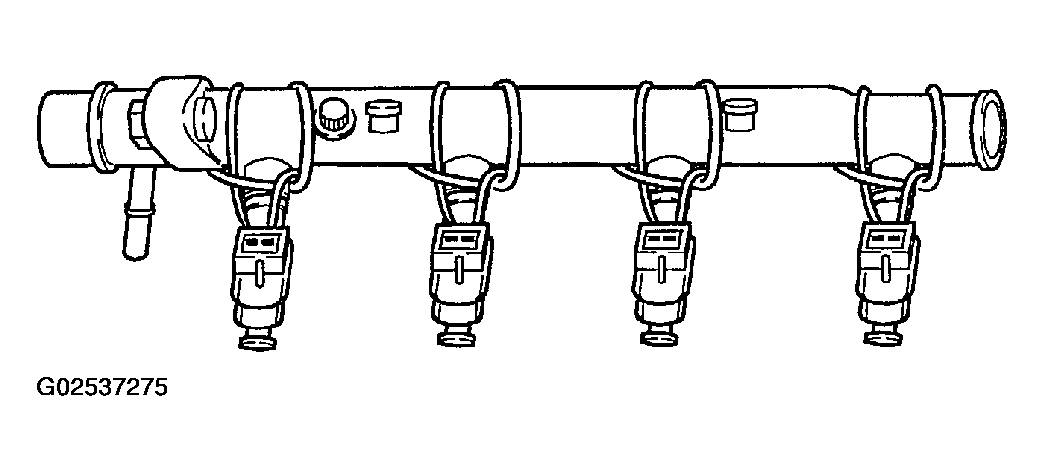

- Secure injectors to fuel rail with wire.
- Connect data link connector terminals FUEL PUMP and B+ with jumper wire.
- Turn ignition switch ON.
- Tilt injectors about 60 degrees and verify that no fuel leaks from the injector nozzles.
- If fuel leaks, replace injector. Refer to REMOVAL .
- Turn ignition switch OFF and remove jumper wire.
