Quick Connector: Inspection

Once installed, pull and push quick connector to direction "A" and "B" to make sure the connection is secure.

NOTE: Don't press lock retainer.

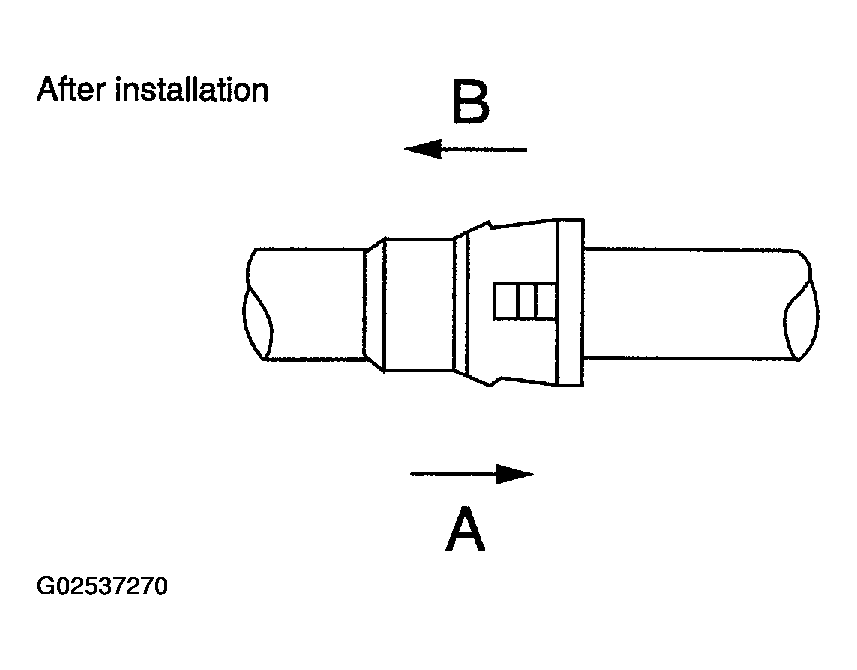

Fig 1: Inspecting After Installation
G02537270Courtesy of KIA MOTORS AMERICA, INC.
