Quick Connector: Installation

Position quick connector to male pipe (direction "A" and push quick connector until retainer lock in and a click is heard.

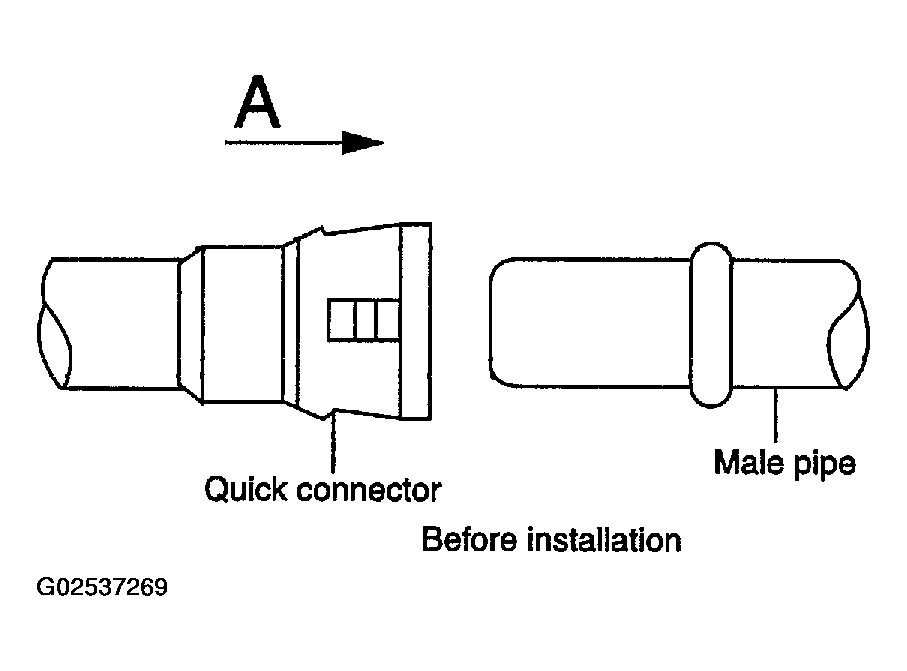

Fig 1: Installing Quick Connector

Courtesy of KIA MOTORS AMERICA, INC.
