Component Locations

For component locations on Optima & Magentis (Canadian), Rio, Sedona, Sorento and Spectra, see Fig 1-Fig 6 .

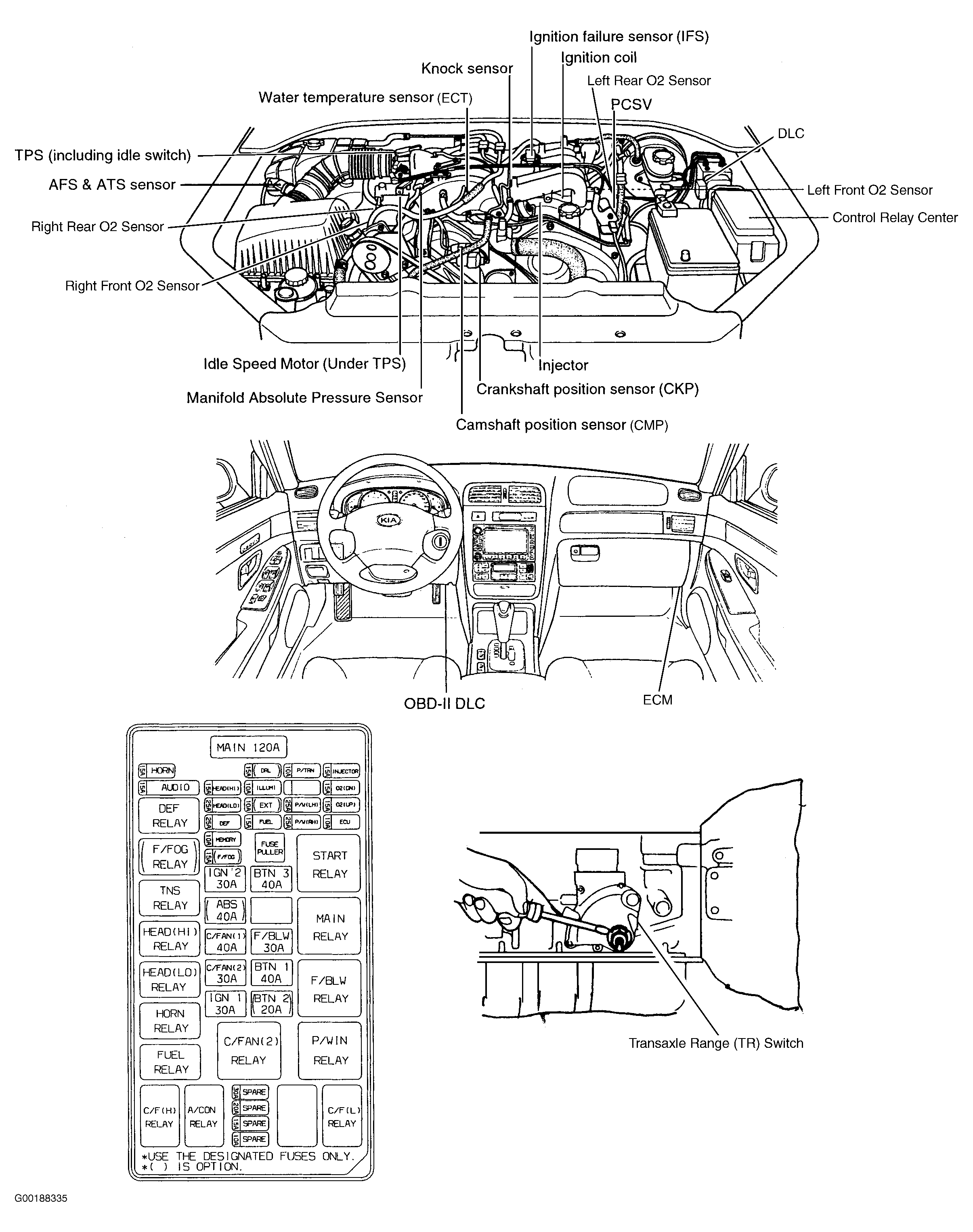

Fig 1: Identifying Component Location (Optima & Magentis (Canadian) 2.4L)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Component Location (Optima & Magentis (Canadian) 2.7L)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Component Locations (Rio)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Component Location (Sedona)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Identifying Component Locations (Sorento)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Identifying Component Locations (Spectra)

Courtesy of KIA MOTORS AMERICA, INC.
