Brake Pedal Switch: Rio

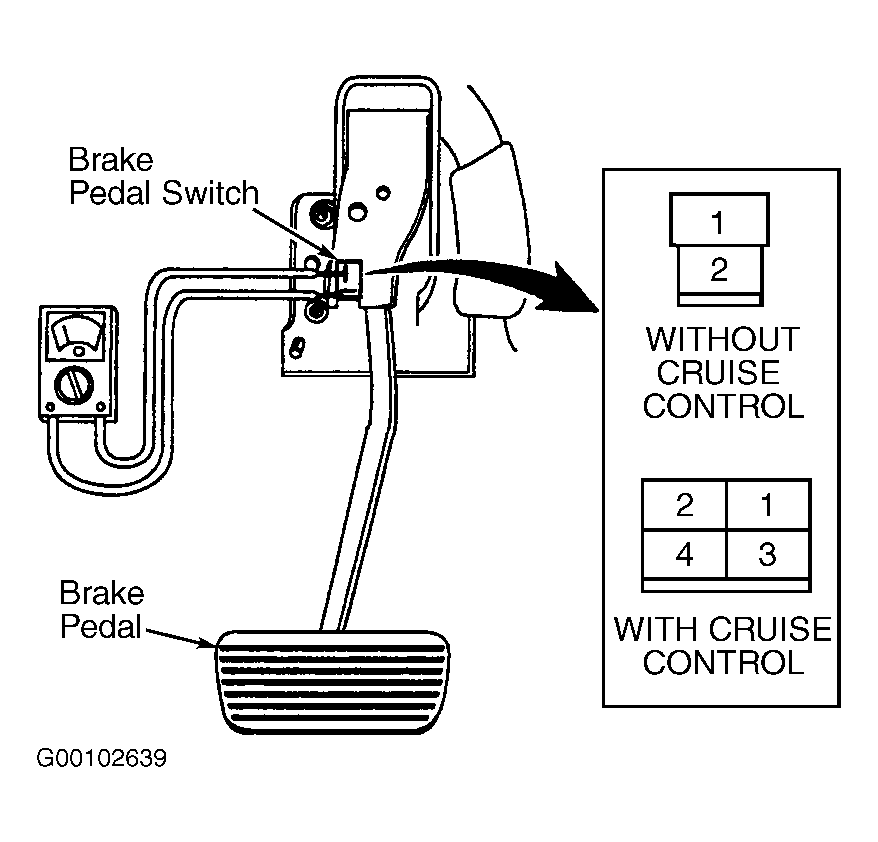

Disconnect brake pedal switch 2-pin harness connector. Locate brake pedal switch mounted at upper part of brake pedal assembly. Measure resistance between brake pedal switch terminals No. 1 and 2. See Figure. With brake pedal released, there should be no continuity. With brake pedal depressed, there should be continuity. Adjust or replace switch as necessary.
