Intake Air Temperature Sensor: Rio

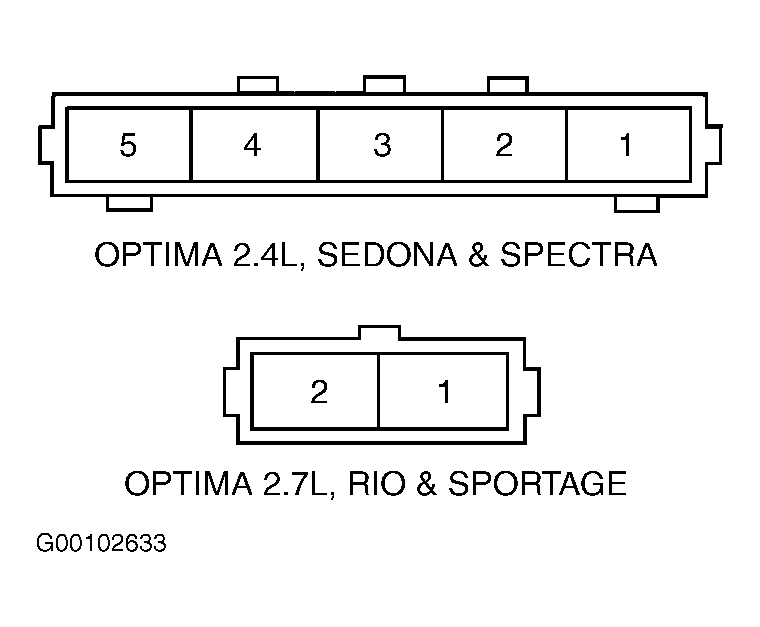

Disconnect IAT sensor 2-pin harness connector. Locate IAT sensor on intake manifold, near fuel injector No. 4. Measure resistance between IAT sensor terminals 1 and 2. See Figure. Resistance should be 2.27-2.64 k/ohms at 68°F (20°C). If resistance is not as specified, replace IAT sensor.
