Steering Shaft: Disassembly

NOTE: Secure column in a vise whose jaws are covered with soft brass or cloth.

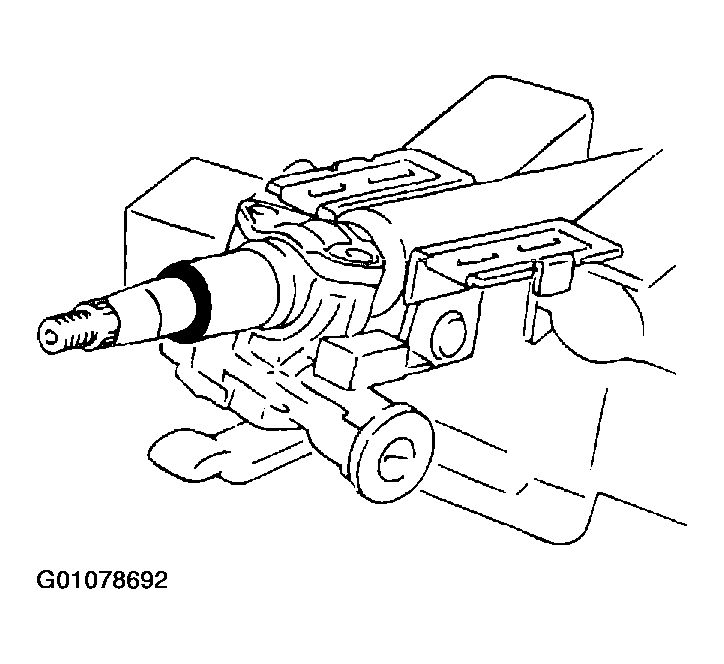

Fig 1: Supporting Steering Wheel Lock Portion Of Column

Courtesy of KIA MOTORS AMERICA, INC.

Rigidly support steering wheel lock portion of column, and then use a chisel to make a groove (screwdriver slot) in head of two steering lock bolts.
Hold steering column in a vise and use a screwdriver to remove lock bolts.
Remove steering lock assembly.

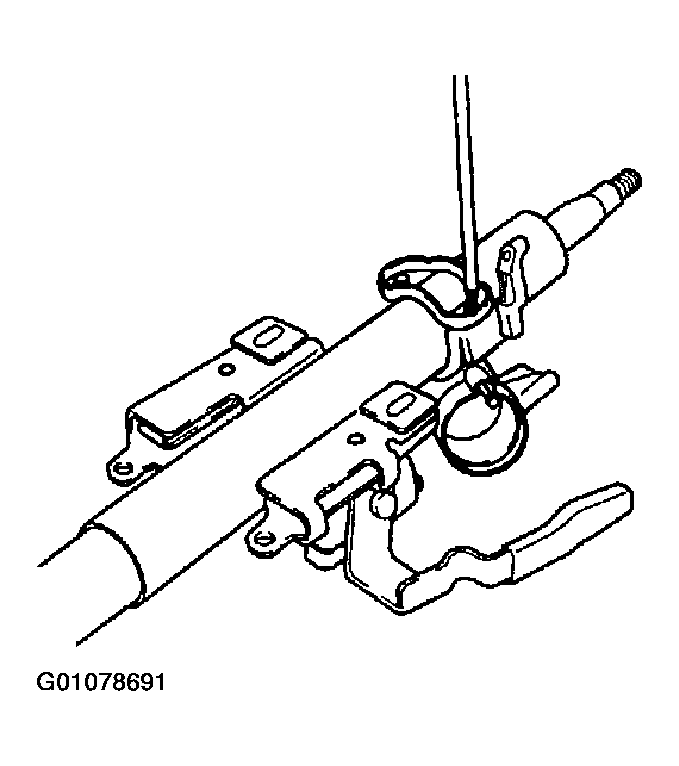

Fig 2: Removing Steering Lock Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove two universal joint pinch bolts from steering column assembly and intermediate shaft.
Remove intermediate shaft pinch bolt.
