Toe-In (Total) Adjustment - Front

Measure toe angle with a toe angle gauge, per manufacturer's instructions.
If measurement does not meet specification, loosen left and right tie rod jam nuts, then turn each tie rod as needed to achieve proper toe angle.
NOTE:
1. Left and right tie rods are right hand threaded. To decrease toe angle, thread right and left side tie rods into tie rod ends. To increase toe in, unthread tie rods.
2. One full turn of both tie rods changes toe in by about 24 in. (6 mm).
3. If may be necessary to rotate one tie rod more than the other in order to achieve the proper toe angle and still retain a straight steering wheel.

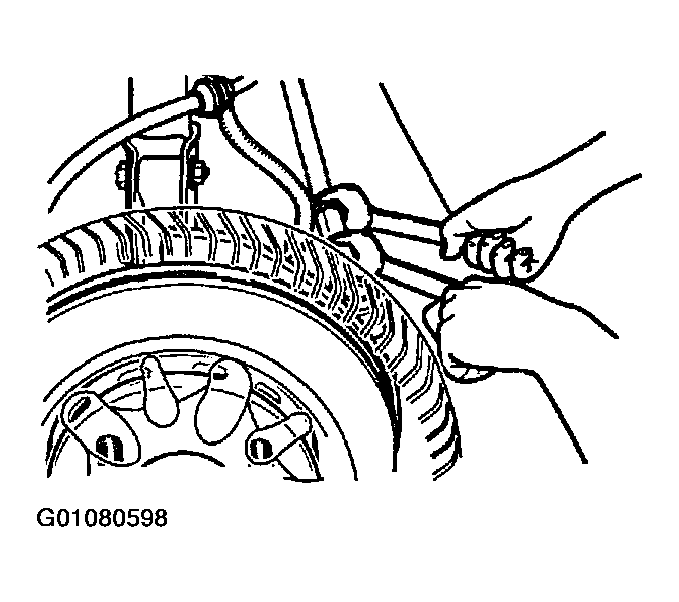

Fig 1: Adjusting Toe
Courtesy of KIA MOTORS AMERICA, INC.
Tighten tie rod jam nuts.
Tightening torque: 41~55 lbs. ft (55~75 N.m, 5.6~7.6 kg.cm)

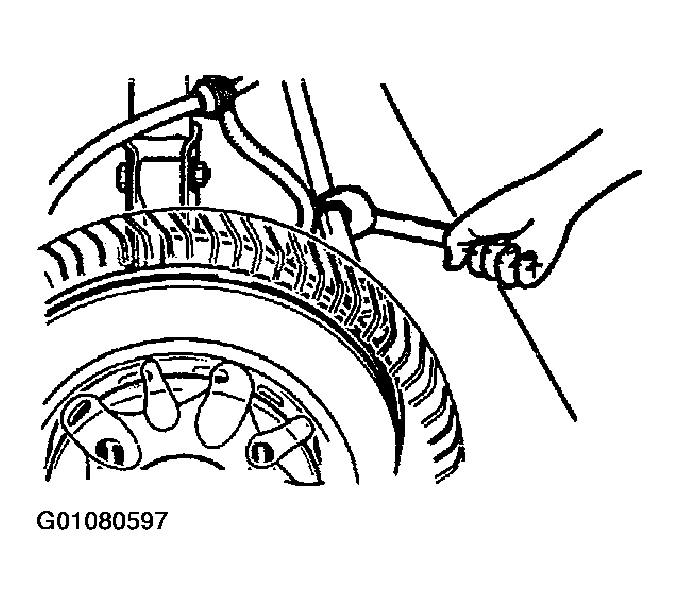

Fig 2: Tightening Tie Rod Jam Nuts
Courtesy of KIA MOTORS AMERICA, INC.
