Wheel Alignment Specifications

For wheel alignment specifications see Fig 1.

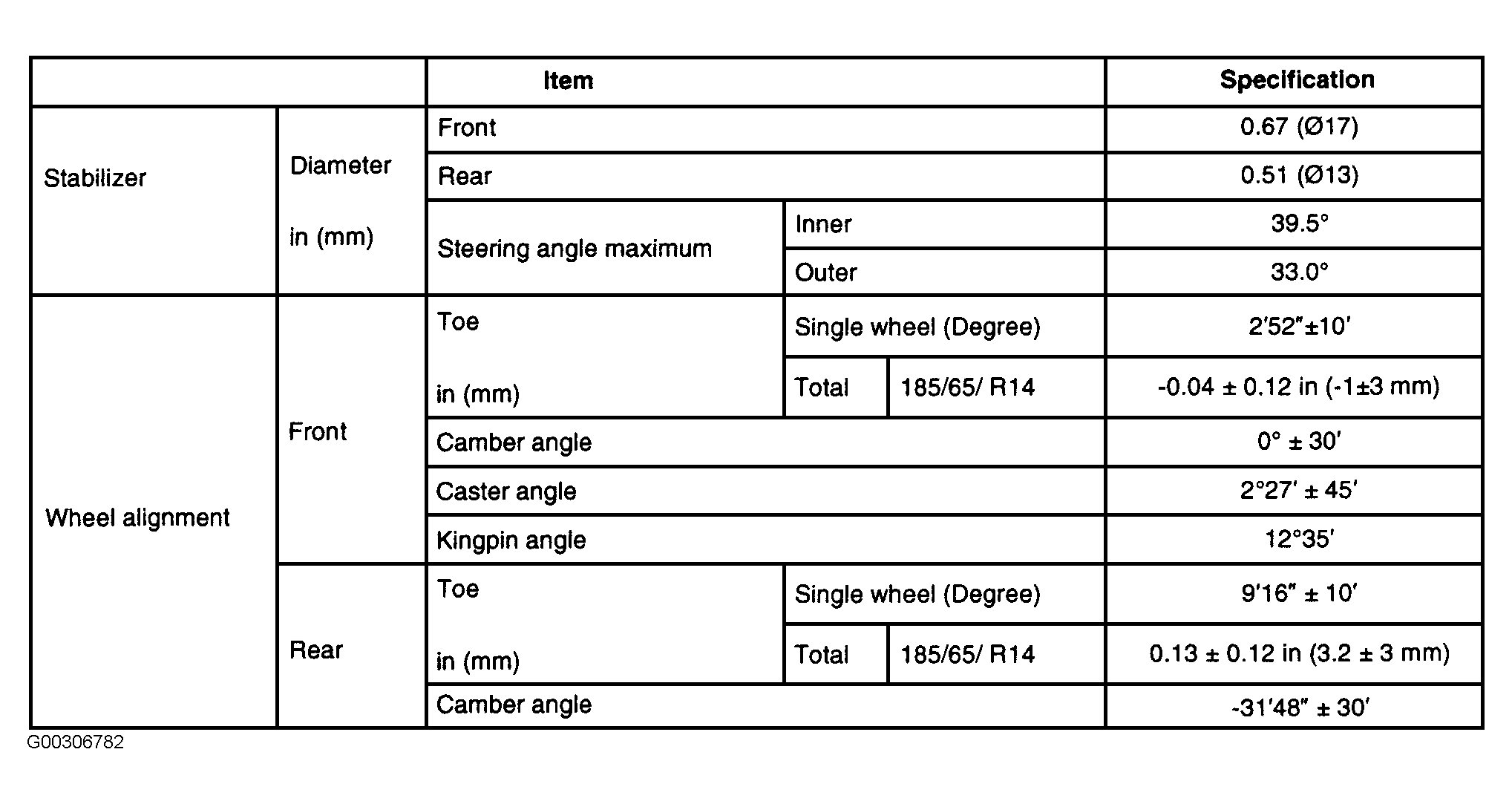

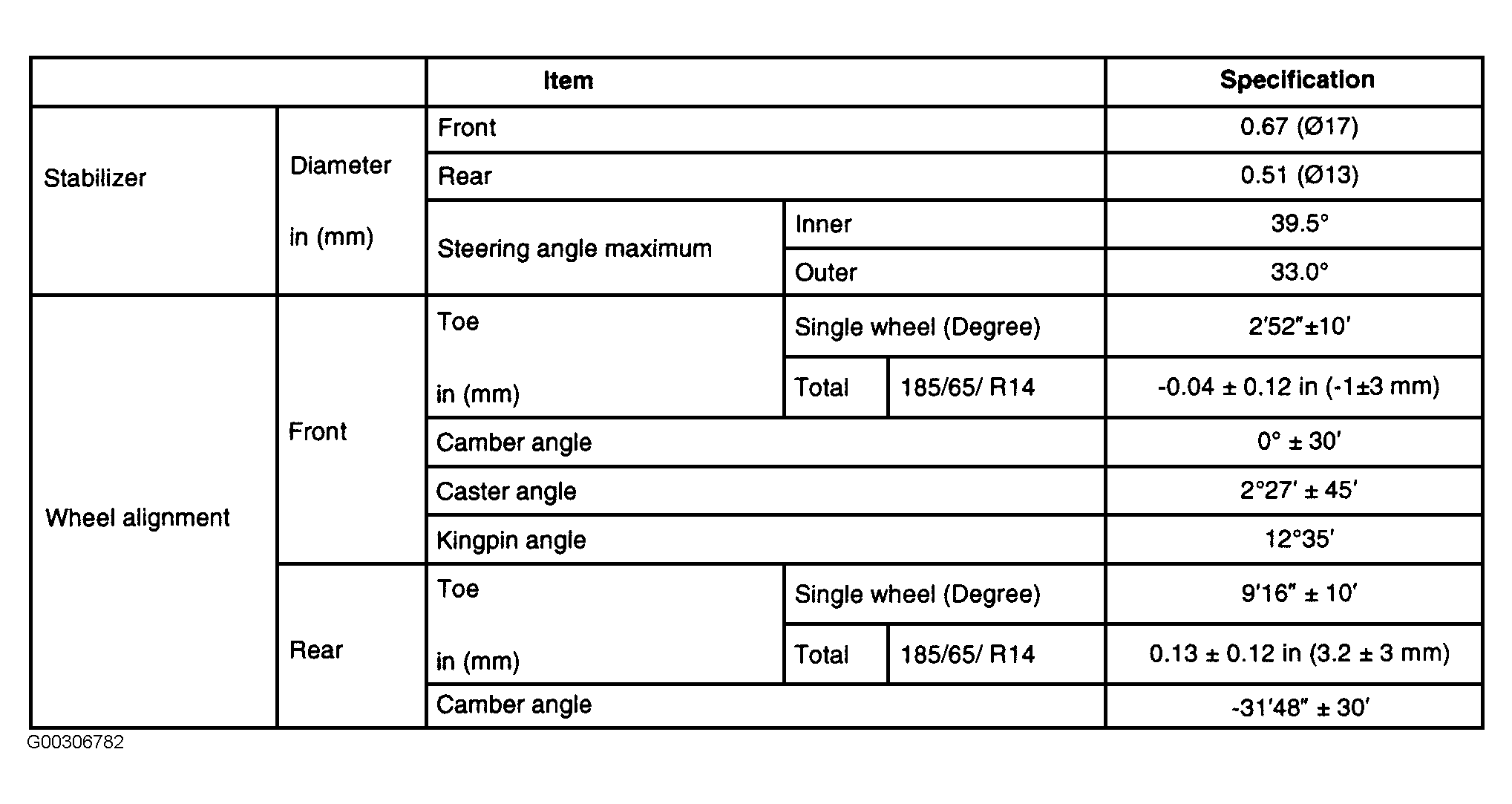

Fig 1: Wheel Alignment Specifications
G00306782Courtesy of KIA MOTORS AMERICA, INC.
