Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|

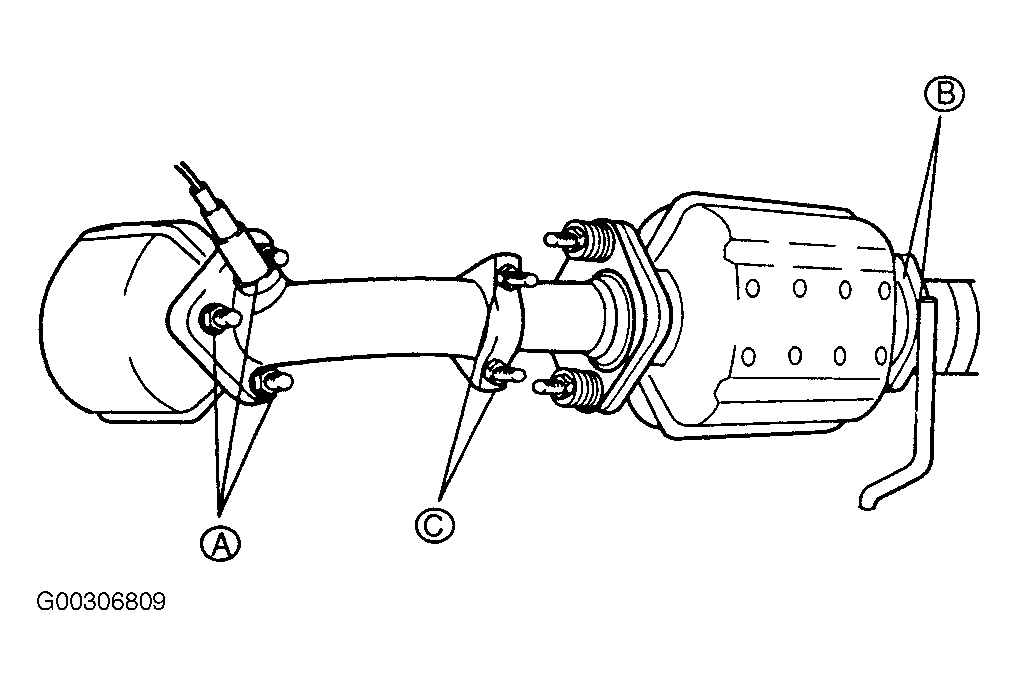

| Exhaust Pipe (2) | ||||||
| "A" | 46-63 (40-42) | |||||
| "B" | 79-108 (69-94) | |||||
| "C" | 24-31 (21-27) | |||||
| Lower Starter Bolts | 43-60 (37-52) | |||||
| Intake Manifold Bracket Bolts | 43-60 (37-52) | |||||
| Starter Cable Nut | (1) | |||||
| INCH Lbs. (N.m) | ||||||
| Starter Connector Bolt | 89-106 (10-12) | |||||
| Starter Brush Plate Screws | 26-35 (3-4) | |||||
| Starter Rear Cover Bolts | 35-62 (4-7) | |||||
| Starter Solenoid Bolts | (1) | |||||
| Starter Solenoid Screws | 36-71 (4-8) | |||||
| Upper Starter Bolt | 89-106 (10-12) | |||||
|
||||||
