Quick Connector: Removal
NOTE:
Release fuel system pressure before servicing any fuel system connection. See RELEASING FUEL SYSTEM PRESSURE
.

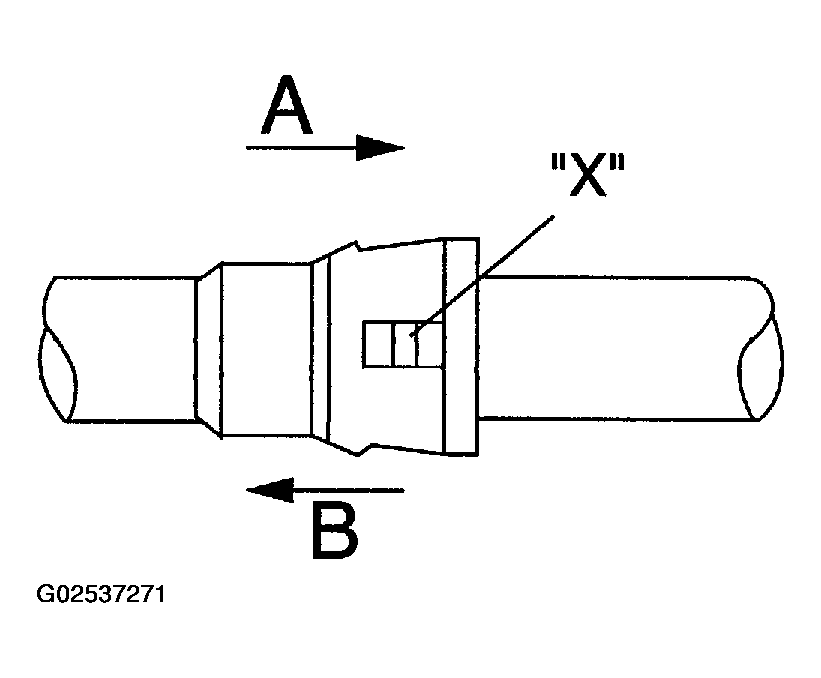

- Push quick connector to direction "A"
- Squeeze both sides of lock retainer and pull connection apart to direction "B"
CAUTION: Don't push and pull too hard.
