Vacuum Hose Routing

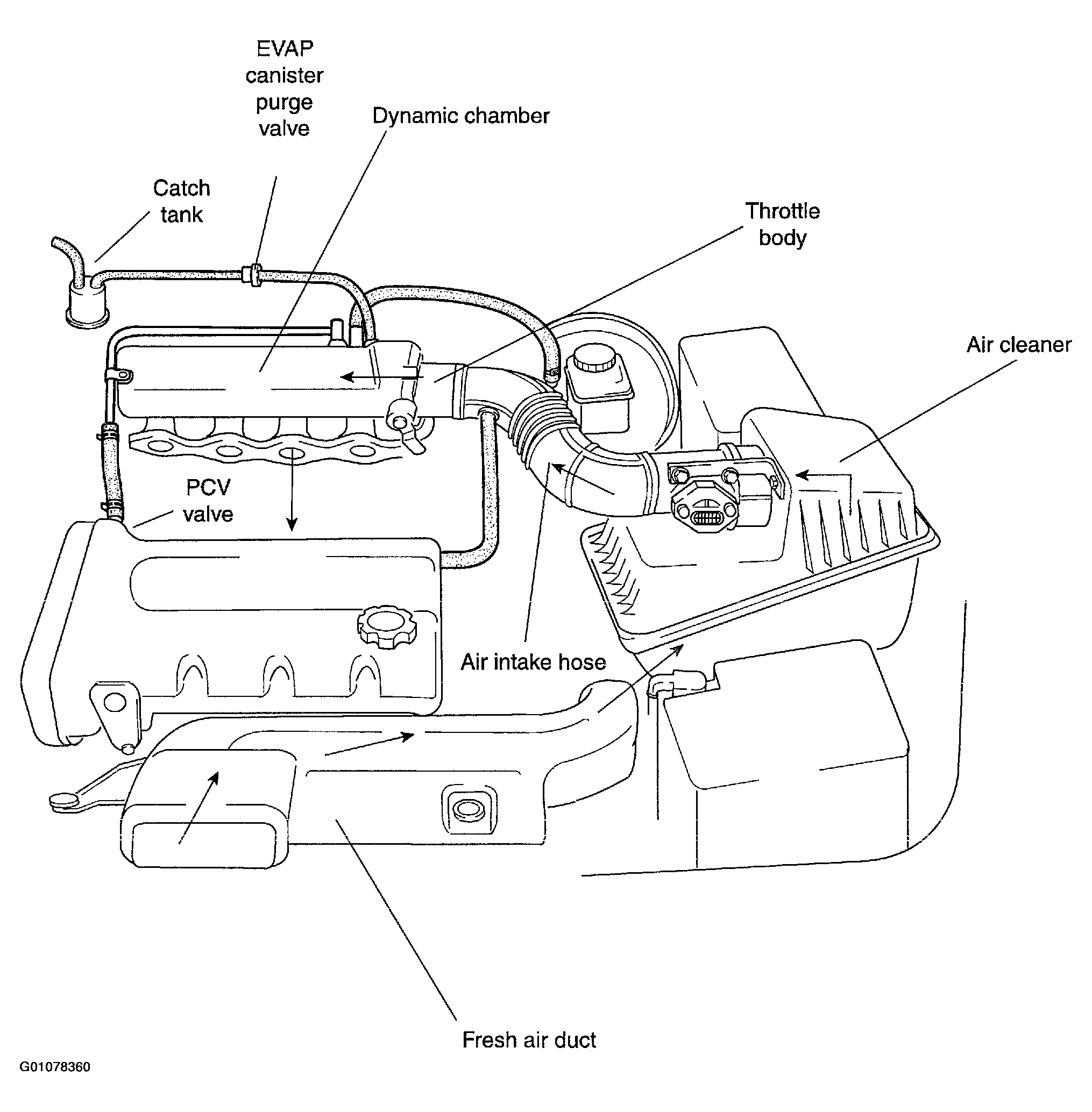

Fig 1: Illustrating Vacuum Hose Routing
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
