Clutch Master Cylinder: Reassembly

NOTE:

Clean disassembled parts in solvent and blow through all parts and passages with compressed air.
Do not mix different brands of clutch fluid.
Apply specified clutch fluid to part of piston assembly and cylinder bore before assembly.
Replace parts with new ones whenever directed to do so.

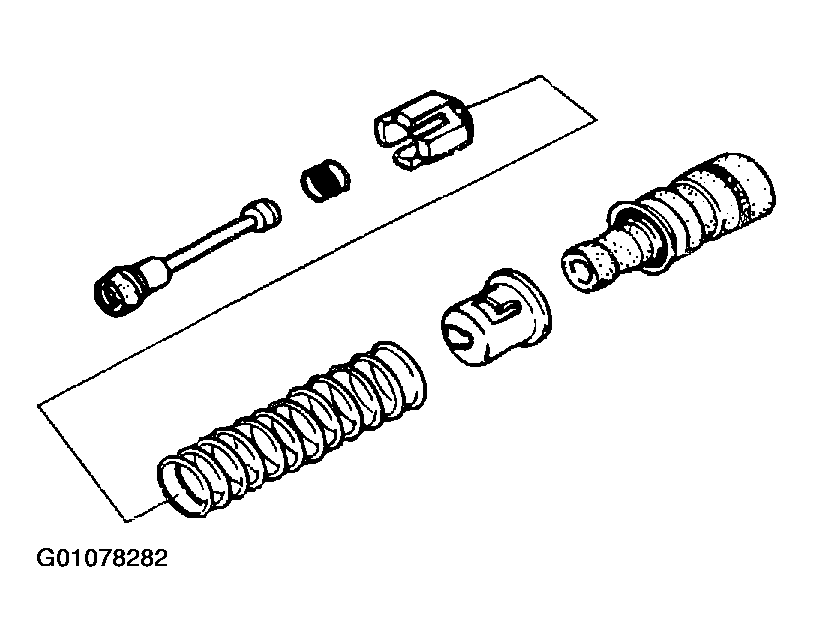

Fig 1: Illustrating Cleaned Components

Courtesy of KIA MOTORS AMERICA, INC.

Depress retaining tabs.

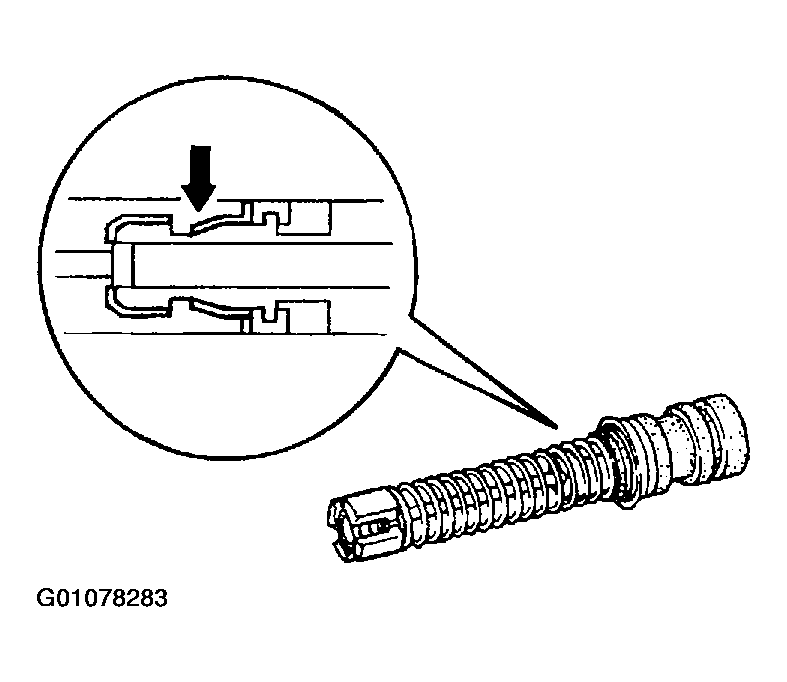

Fig 2: Depressing Retaining Tabs
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not damage push rod contact surface of piston.
Install valve assembly to master cylinder body.
Install snap ring while pushing in push rod.

Fig 3: Installing Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
