Clutch Release Cylinder: Disassembly

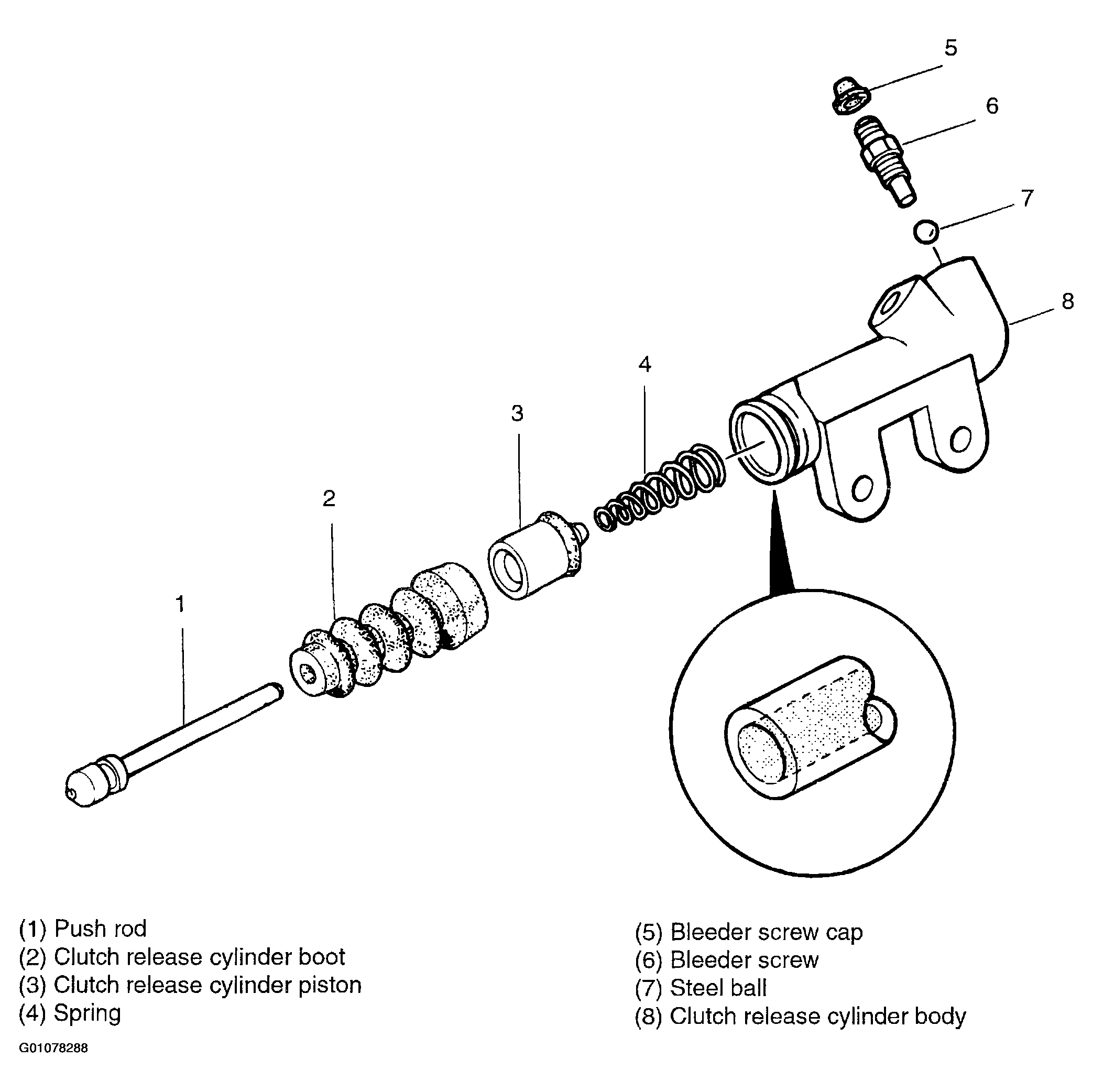

Fig 1: Exploded View Of Clutch Cylinder Assembly
G01078288Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove clutch cylinder boot and push rod.
  2. Remove piston and cup assembly by applying compressed air through the clutch hydraulic line installation hole.
CAUTION: Hold a rag over the opening of release cylinder piston bore to prevent piston assembly from flying out.
