Clutch Release Cylinder: Installation

Install clutch release cylinder.
Tighten two release cylinder bolts.
Tightening torque: 13.7~18.8 lb.ft (18.6~25.5 N.m, 1.9~2.6 kg.m)
Tighten clutch hydraulic line flare nut with SST (0K130 430 019).
Tightening torque: 9.4~15.9 lb.ft (12.7~21.5 N.m, 1.3~2.2 kg.m)

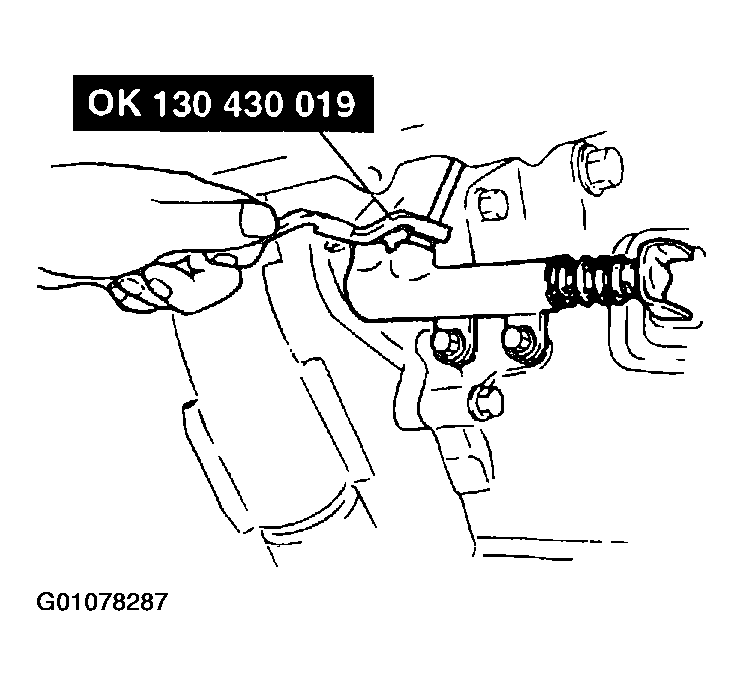

Fig 1: Tightening Clutch Hydraulic Line Flare Nut
Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the clutch system. See HYDRAULIC FLUID BLEEDING .
Verify that there is no leakage.
Perform a road test.
