H-1b - Auto Trans Control Sys,A/T Shift Interlock Control Sys

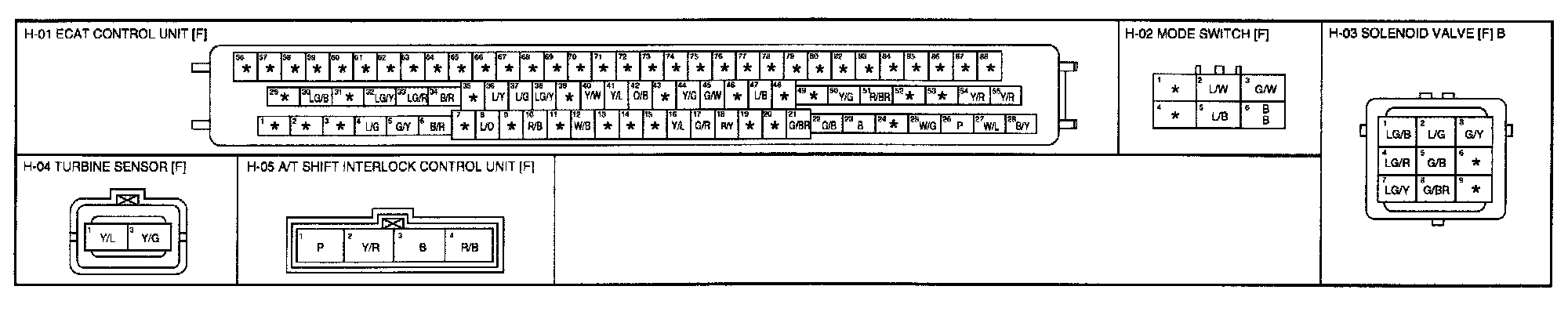

H-1b - Automatic Transaxle Control System, A/C Shift Interlock Control System Connectors:
