Valve Spring
Valve spring1. Inspect each valve spring for cracks and damage.

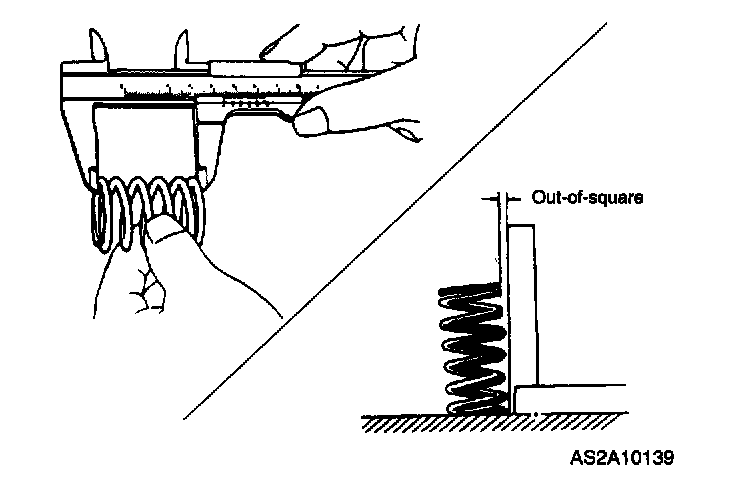

2. Measure free length and out-of-square. Replace valve springs as needed.
Free length: 1.84 inch (46.7 mm)
Out-of-square: 0.0638 inch (1.62 mm) maximum
1. Inspect each valve spring for cracks and damage.
2. Measure free length and out-of-square. Replace valve springs as needed.
Free length: 1.84 inch (46.7 mm)
Out-of-square: 0.0638 inch (1.62 mm) maximum
