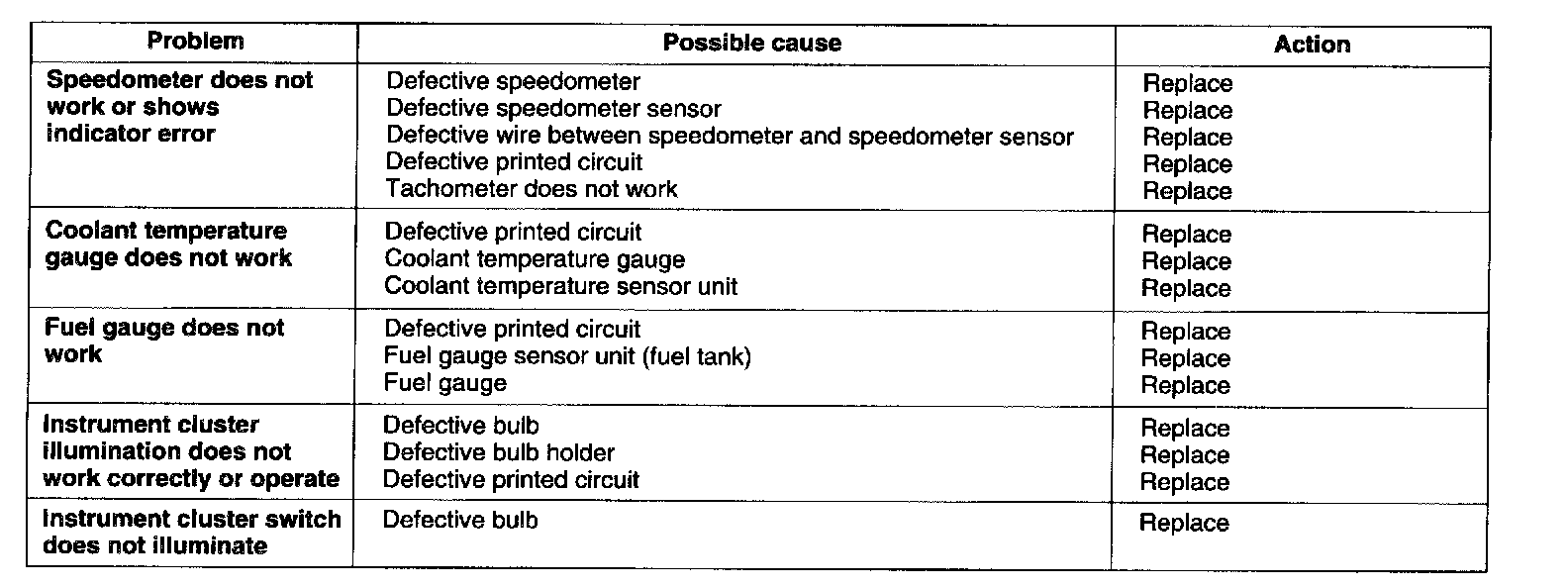

Problem Symptom Table

Problem/Possible Cause:




In vehicle use, if an instrument does not run smoothly or indicate correctly, remove instrument and test it in shop to determine fault cause. Remove a tailed bulb by removing instrument cluster. Other problems and their possible causes are listed.
