Engine Control Module: Service and Repair

REMOVAL

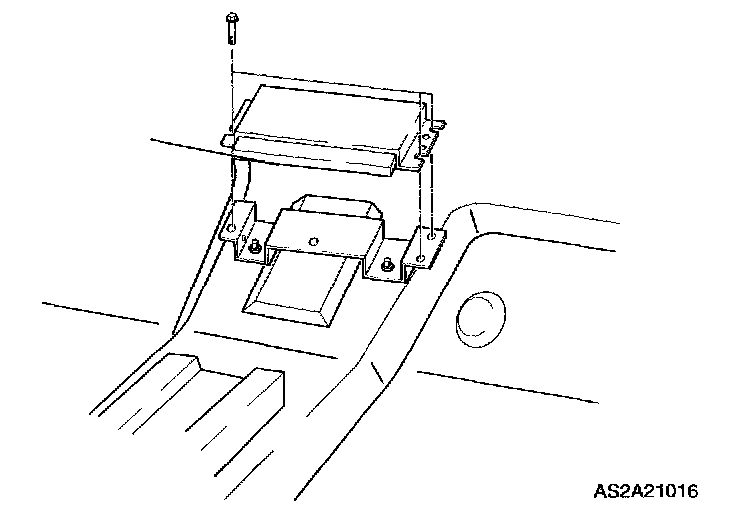

1. Remove three bolts retaining ECM to floorboard.
2. Remove ECM from mounting brackets.




3. Disconnect ECM connector.

INSTALLATION
1. Attach connector to ECM.
2. Mount ECM onto mounting bracket in floorboard.
3. Install three bolts to retain ECM
4. Connect ECM connector.
