Oxygen Sensor: Service and Repair

OXYGEN SENSOR (O2S)

REMOVAL




1. Disconnect heated oxygen sensor connector.

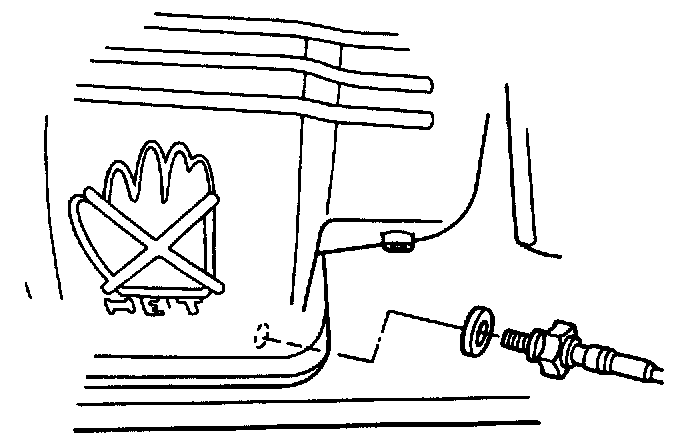

2. With standard oxygen sensor socket, remove heated oxygen sensor and washer.

INSTALLATION
1. Install heated oxygen sensor and washer.

Tightening Torque: 22 - 36 lb-ft (30 - 49 Nm, 3 - 5 kg-m)




2. Reconnect heated oxygen sensor connector.
