Transaxle Control Module (TCM)

Transaxle control module (TCM)

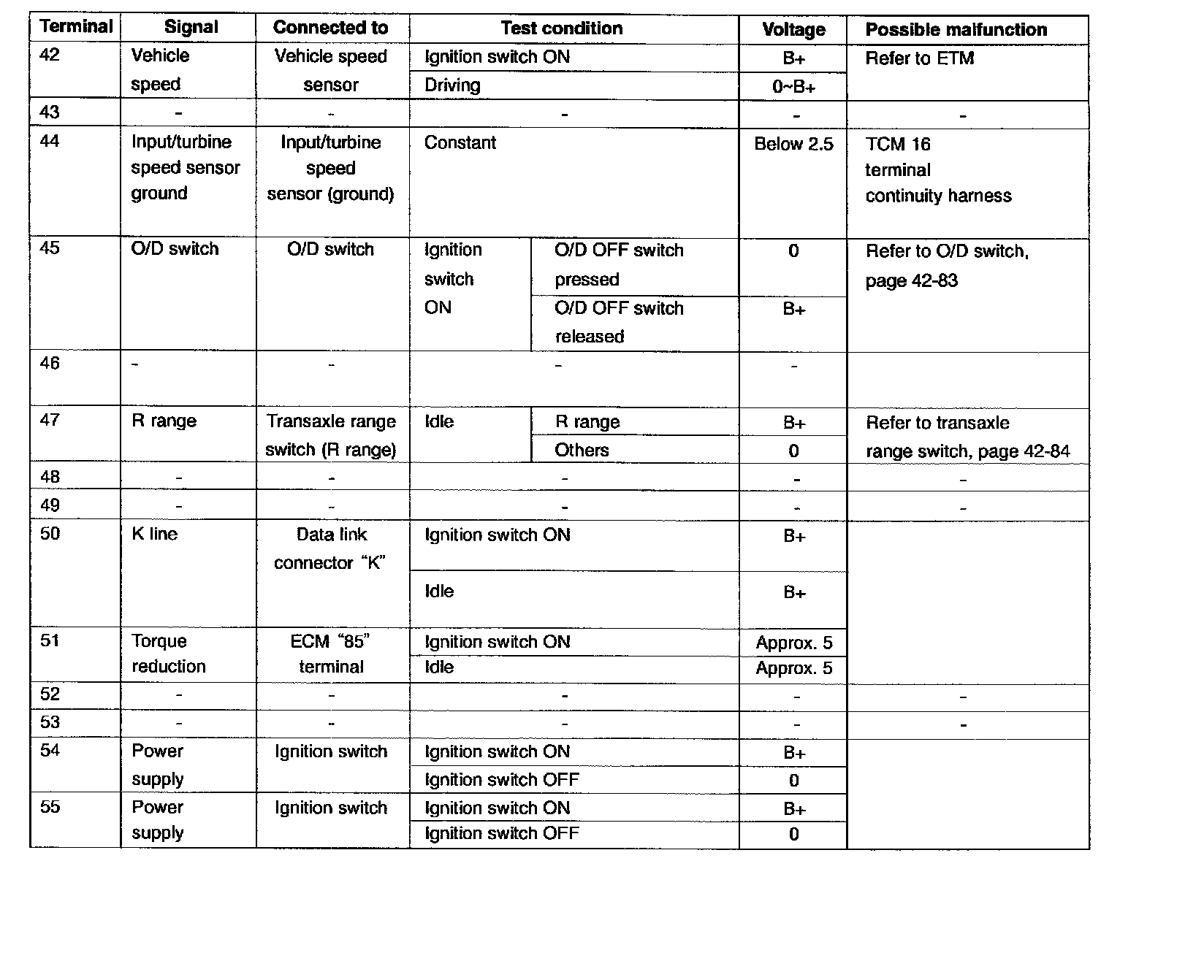

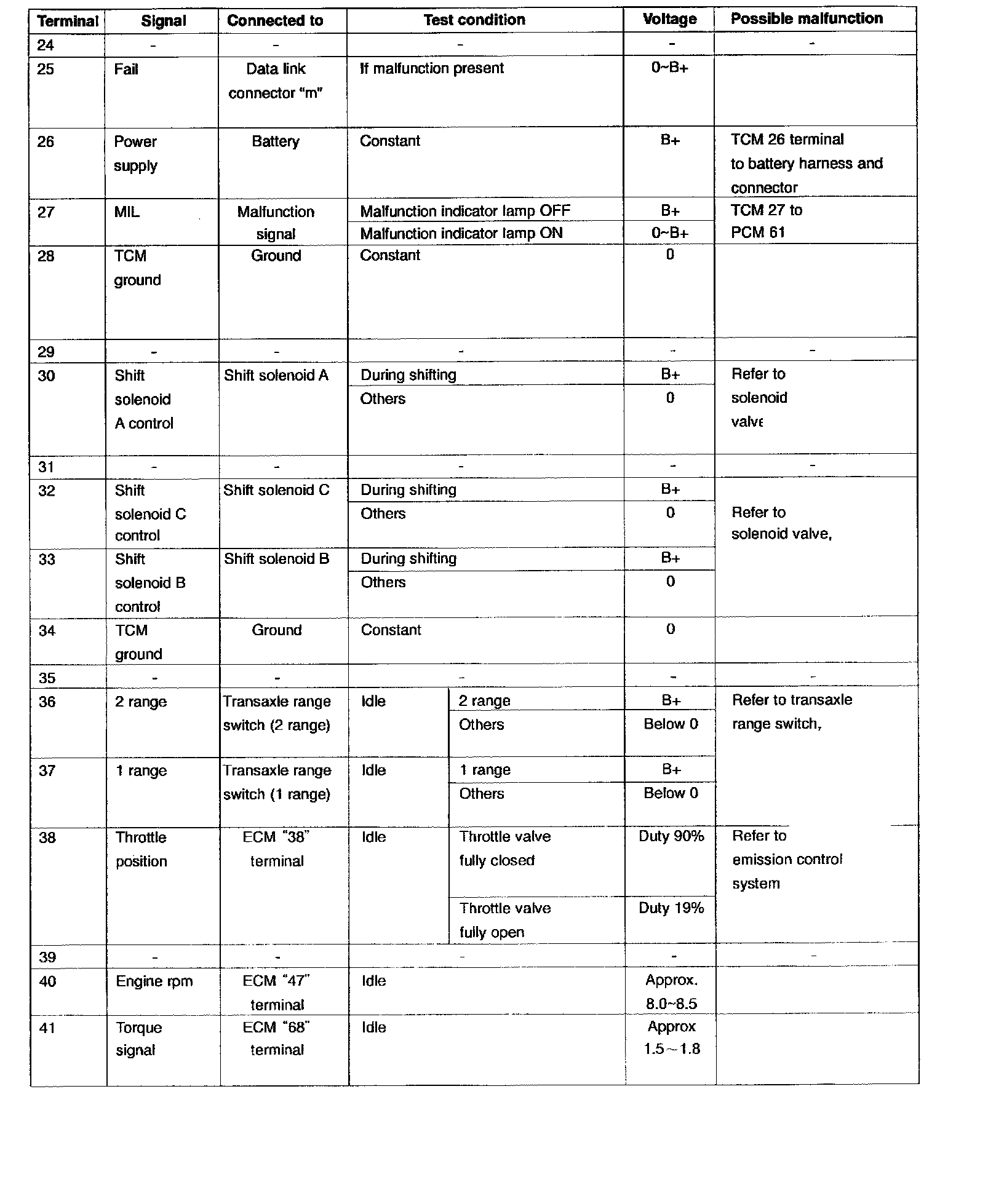

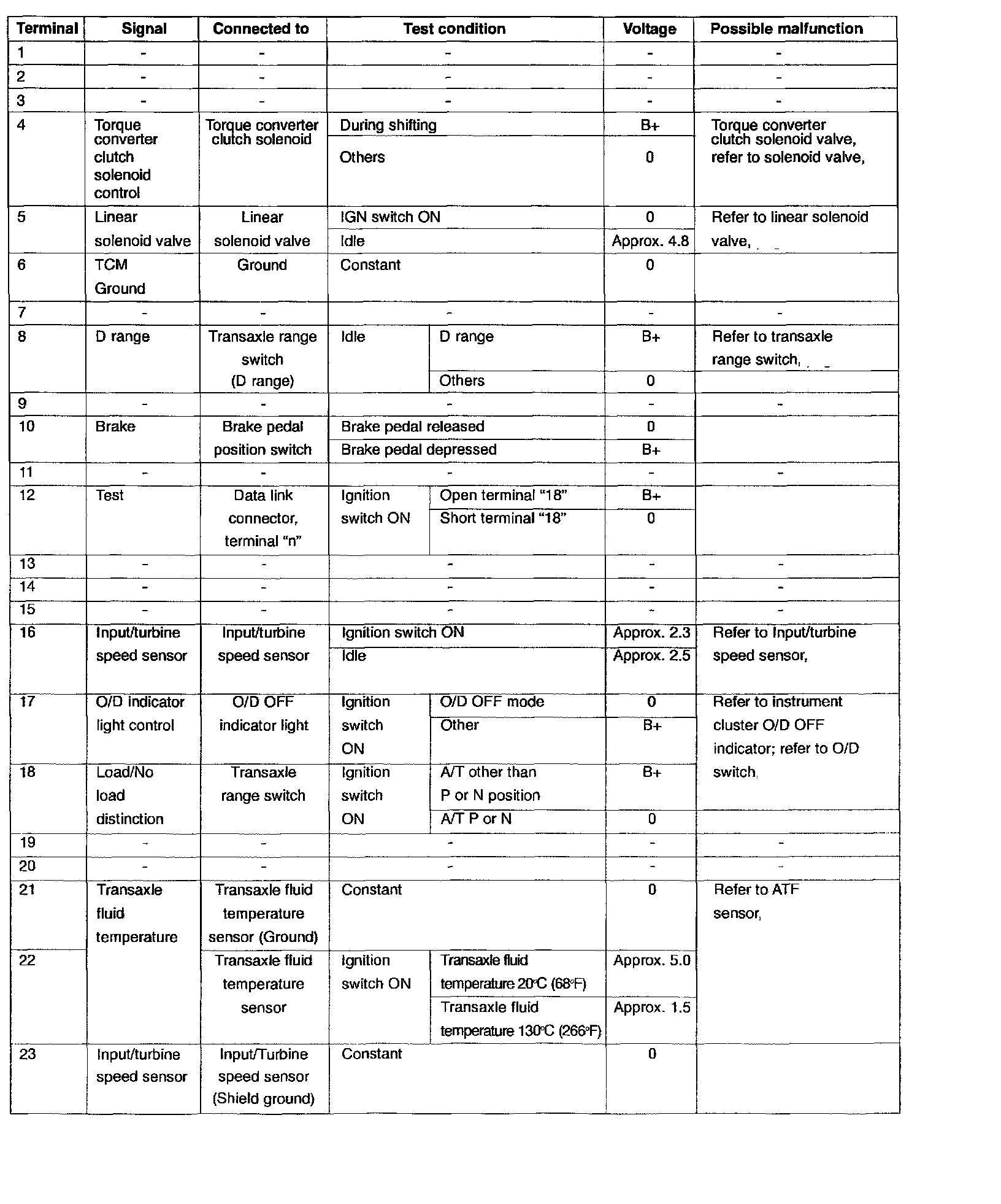

TCM terminal voltage chart





1 of 3





2 of 3





3 of 3
