Fuel Filler Pipe: Installation
WARNING:
Fuel is explosive. When working on fuel system parts, make sure to supply adequate ventilation to the work area. Do not smoke, and keep sparks and open flames away.
- Raise vehicle.

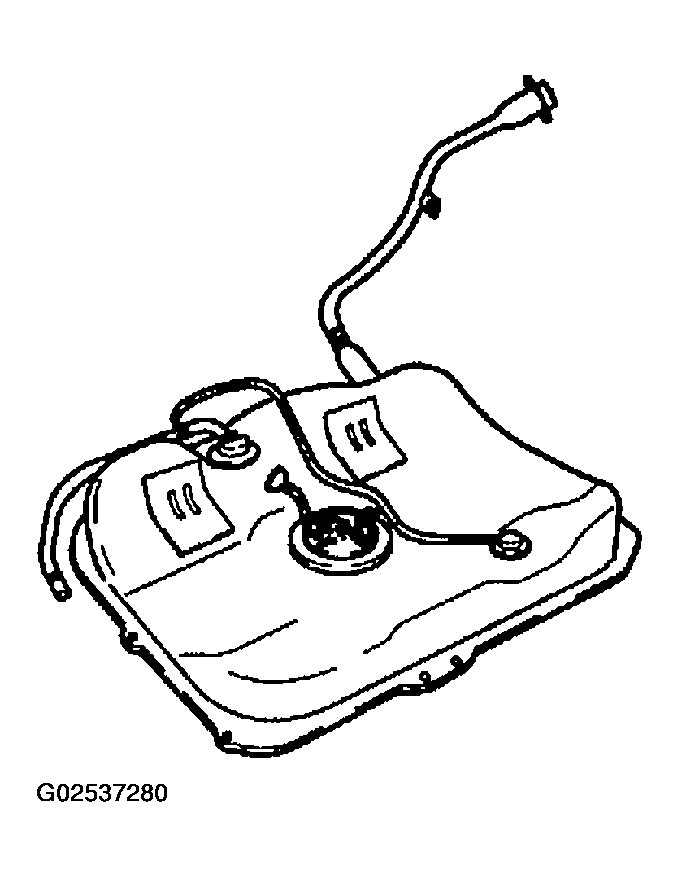

- Connect fuel filler pipe assembly to joint hose.
- Install bolts to bracket attaching fuel filler pipe assembly to vehicle sub-frame.
Tightening torque:
- 6.5 - 9.3 lb-ft (8.8 -12.7 N.m, 90 - 130 kg-cm)
- Install splash shield, two bolts and two fasteners.
Tightening torque:
- 7.7 -12.2 lb-ft (10.8 - 16.7 N.m, 1.1 - 1.7 kg-cm)
- Lower vehicle on hydraulic lift to ground level.

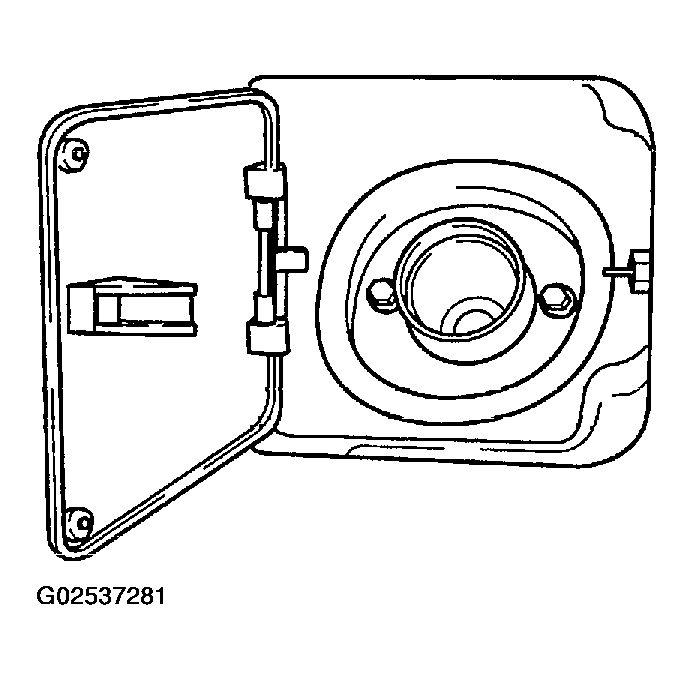

- Install two upper mounting screws to fuel filler pipe assembly.
Tightening torque:
- 1.8 - 2.5 lb-ft (2.5 - 3.5 N.m, 25 - 36 kg-cm)
- Install filler cap.
- Close the fuel filler door.
