Fuel Line: Removal
WARNING:
Fuel is explosive. When working on fuel system make sure to supply adequate ventilation to the work area. Do not smoke, and keep sparks and open flames away.
It may be necessary to remove other chassis brackets in order to gain access to fuel lines.
- Disconnect negative terminal from battery cable.

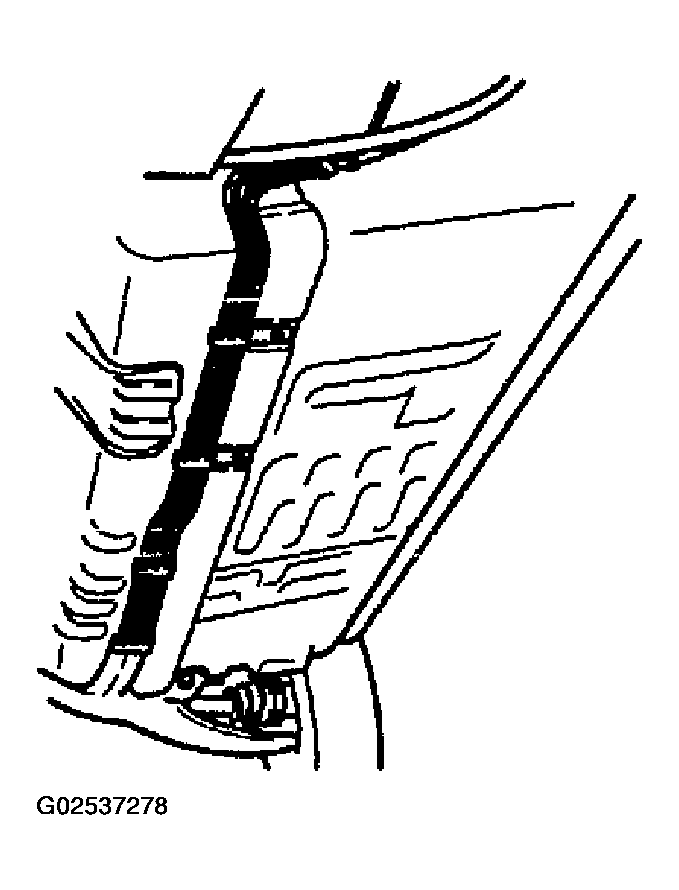

- Loosen six retaining bracket screws and remove two fuel lines from each bracket, one at a time, until two fuel lines are free from brackets.
- Loosen fittings at ends of fuel lines and carefully slide lines through undercarriage of vehicle chassis until they can be fully taken away from fixtures by taking off fastening clips.
