Fuel Pump: Installation

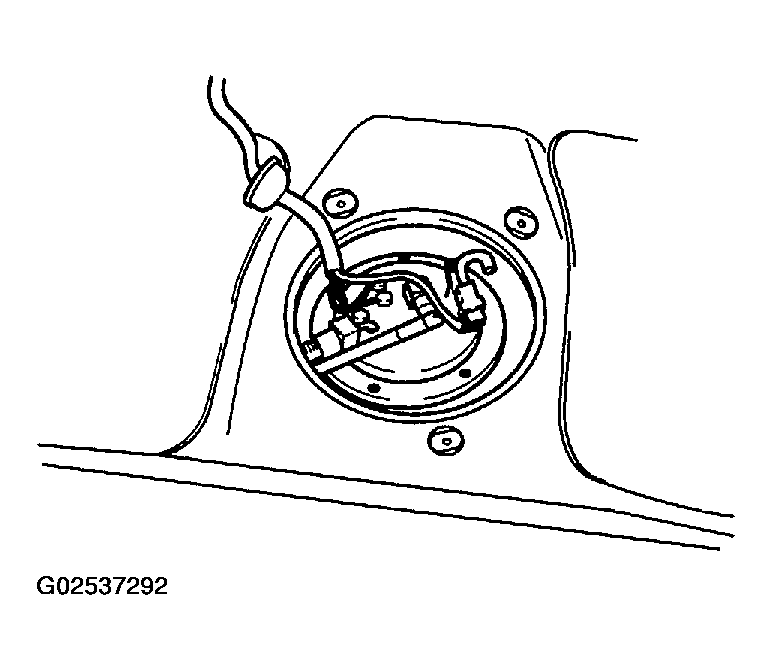

- Install fuel delivery module and tighten six screws.
Tightening torque:
- 7.7 - 12.2 lb-ft (10.8 - 16.7 N.m, 1.1 - 1.7 kg-m)
- Reconnect two fuel hoses to fuel delivery module.
- Install rubber grommet and wire onto access cover.
- Install access cover and tighten three screws.
Tightening torque:
- 7.7 - 12.2 lb-ft (10.8 - 16.7 N.m, 1.1 - 1.7 kg-m)
- Reconnect one connector to fuel delivery module.
- Position wires and secure to floor with tape.
- Install rear seat cushion.
- Raise vehicle.
- Reconnect canister close valve connector.
- Lower vehicle.
- Connect negative battery cable.
