Fuel Pump: Removal

WARNING: Fuel is explosive. An empty fuel tank can still contain explosive gases. Supply adequate ventilation to the work area. Do not smoke and keep sparks and open flames away. Purge fumes from the tank as soon as possible.

Disconnect negative battery cable.
Remove rear seat cushion.
Disconnect fuel delivery module connector.
Remove three screws attaching access cover.

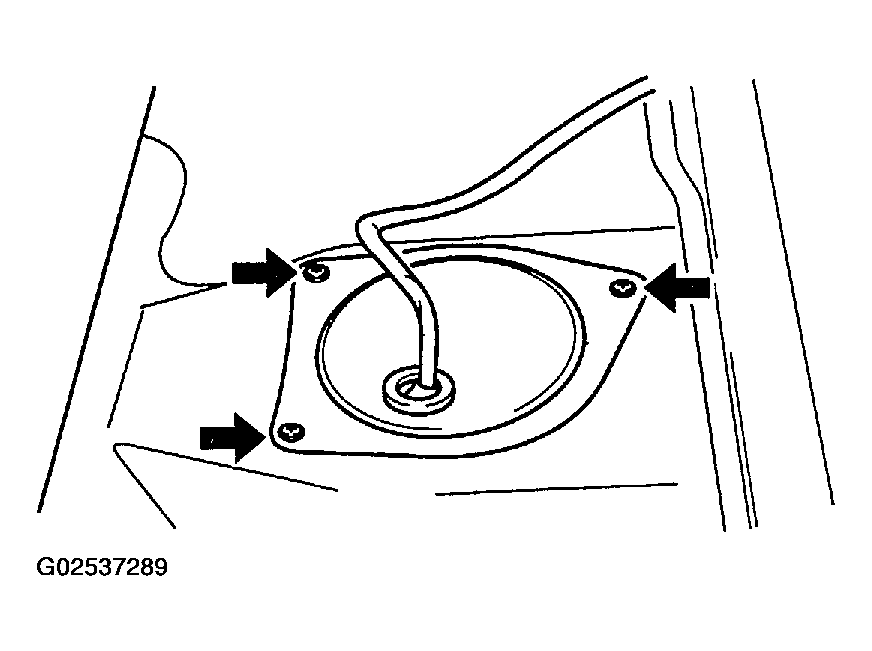

Fig 1: Removing Access Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove rubber grommet and wires from access cover and remove access cover.
Disconnect two fuel hoses from fuel delivery module.

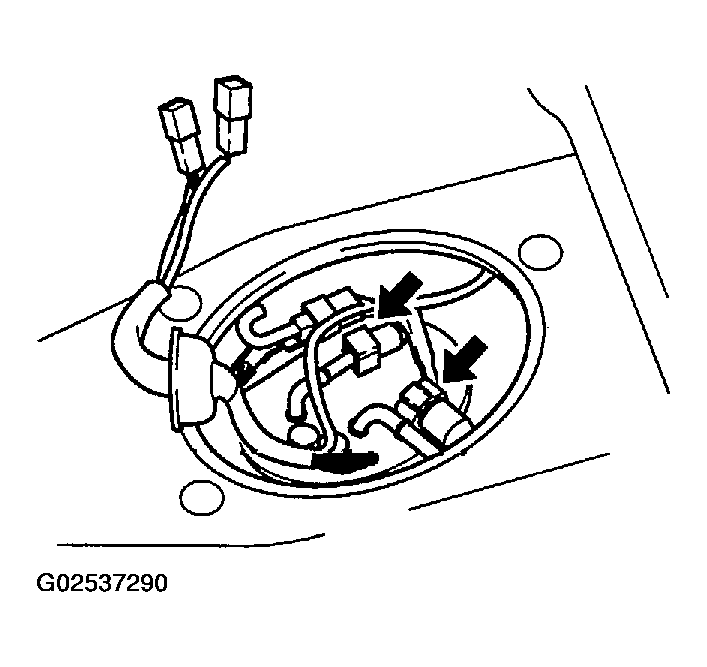

Fig 2: Disconnecting Two Fuel Hoses From Fuel Delivery Module
Courtesy of KIA MOTORS AMERICA, INC.
Remove six screws attaching fuel delivery module and remove fuel delivery module from fuel tank.

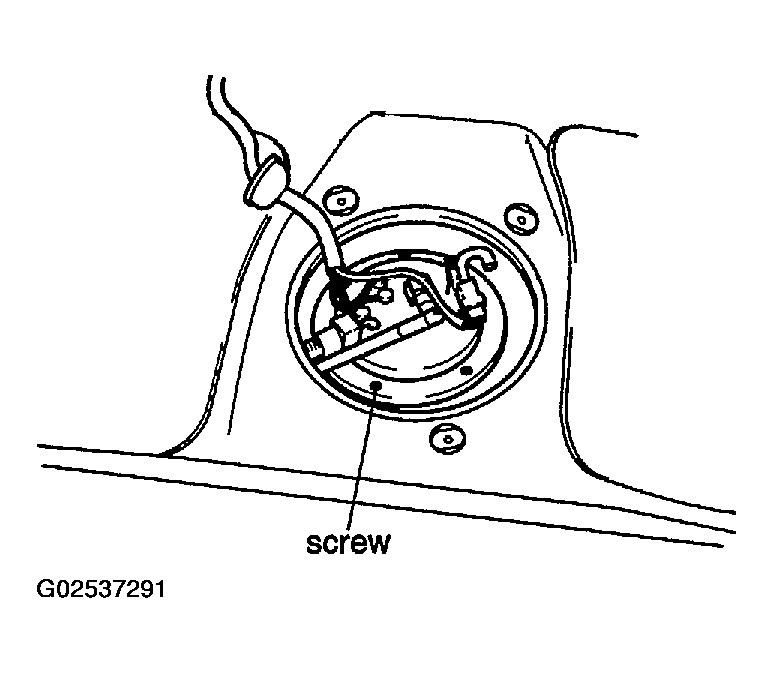

Fig 3: Removing Fuel Delivery Module From Fuel Tank
Courtesy of KIA MOTORS AMERICA, INC.
