Emission Control Components

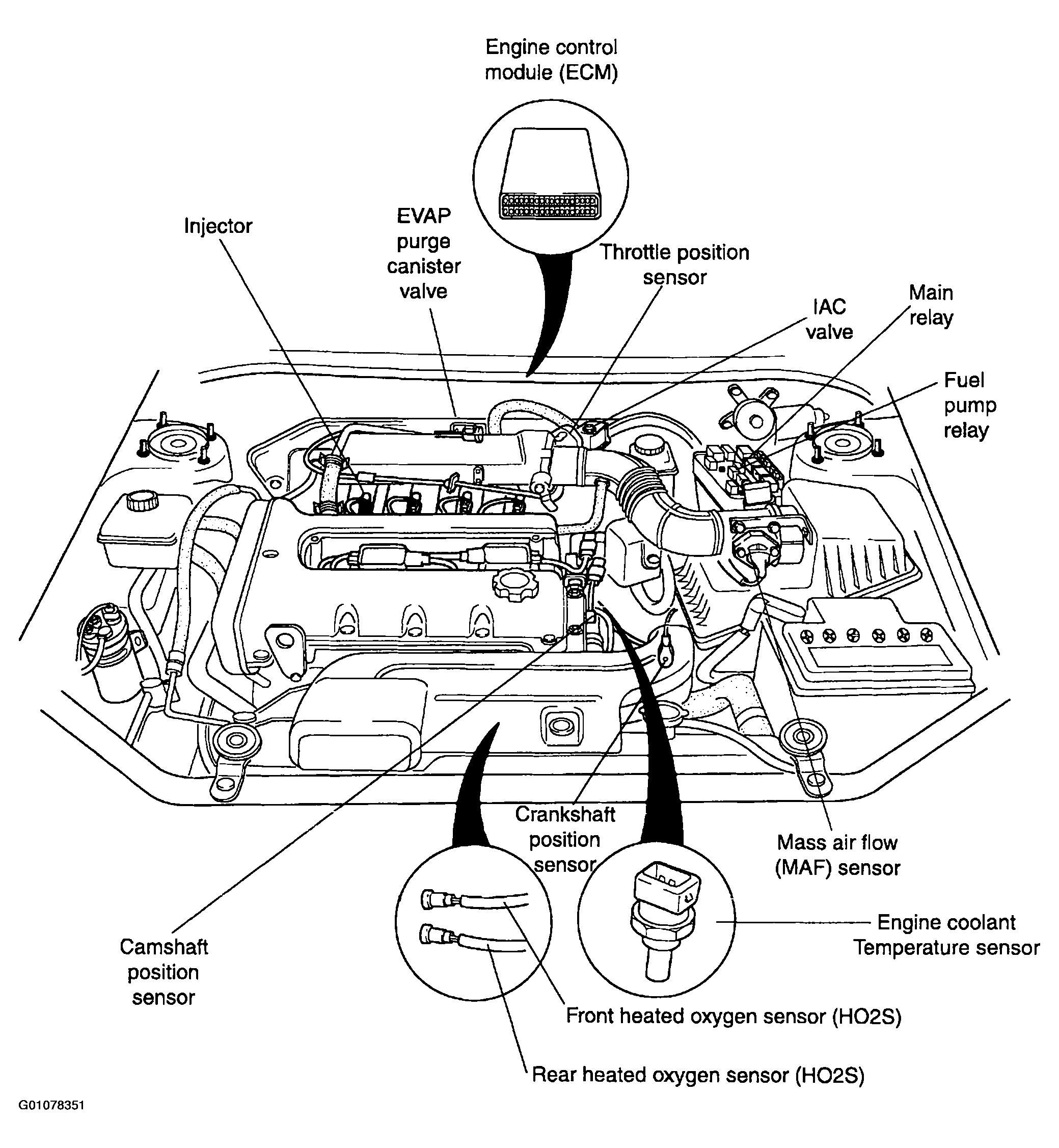

Fig 1: Illustrating Emission Control Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
