PCV Valve Operation

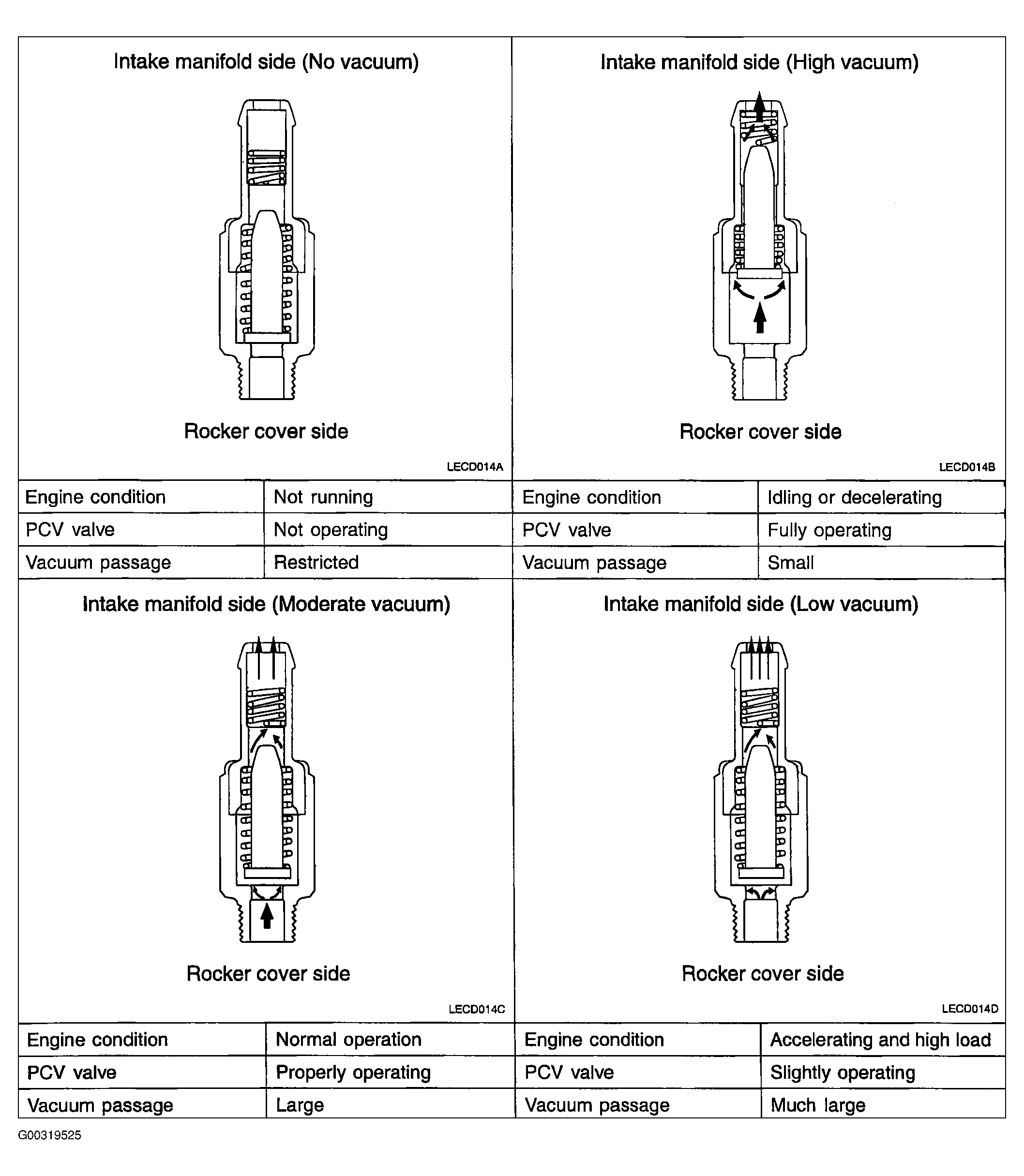

Fig 1: Identifying PCV Valve Operation
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
