System Components

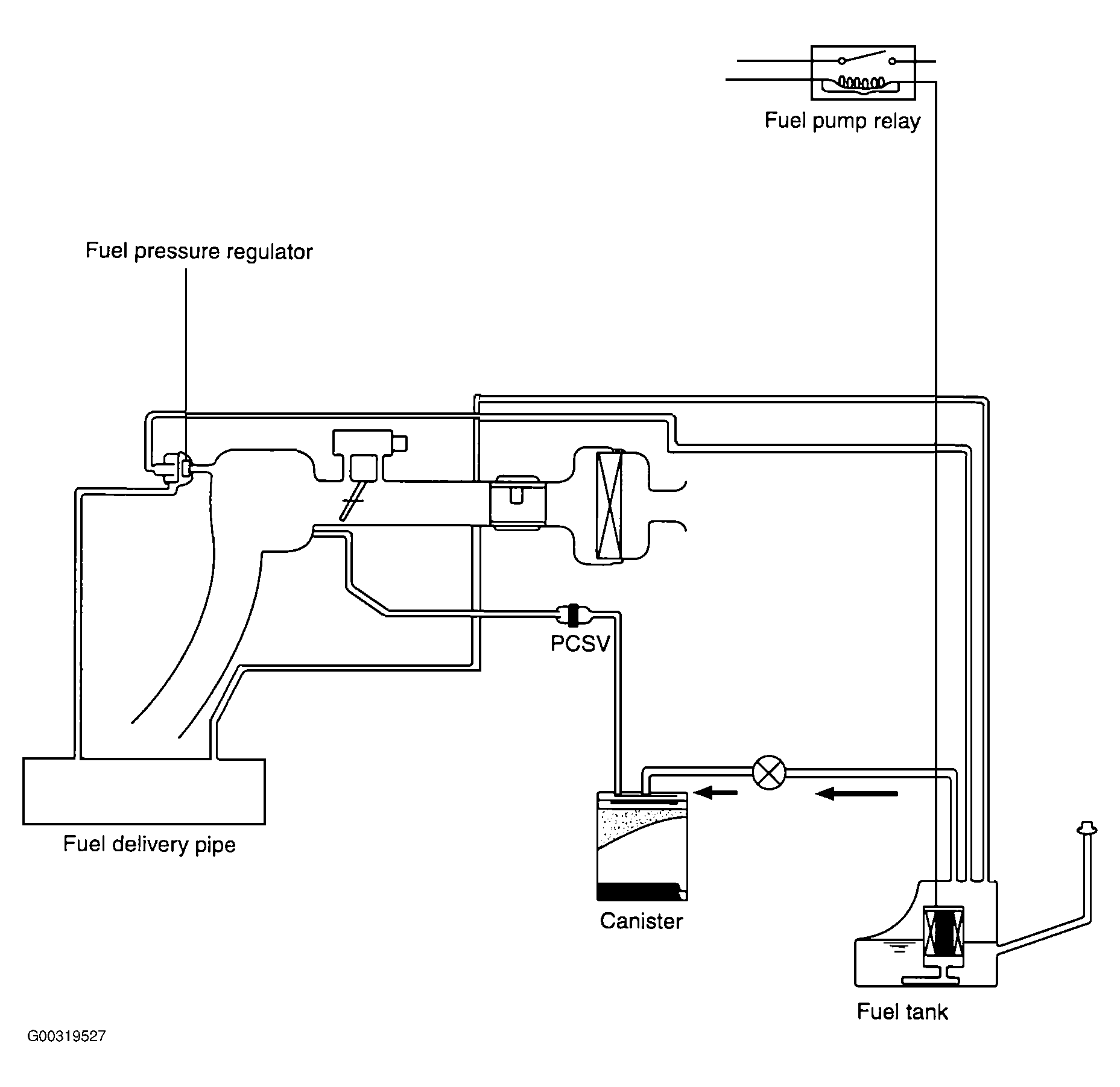

Fig 1: Identifying Evaporative Emission Control System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

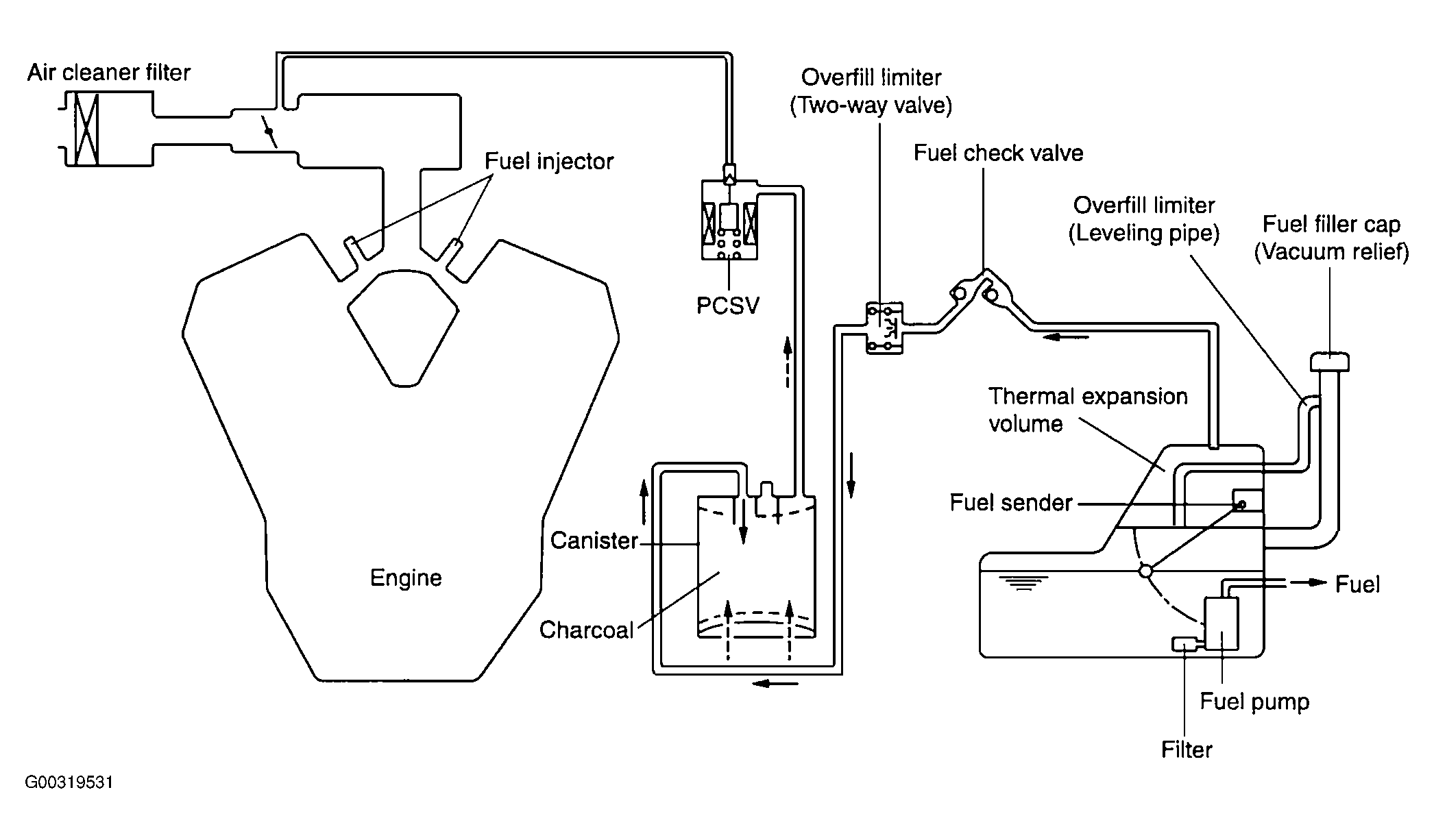

Fig 2: Identifying Evaporative Emission Control System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
