Component Locations

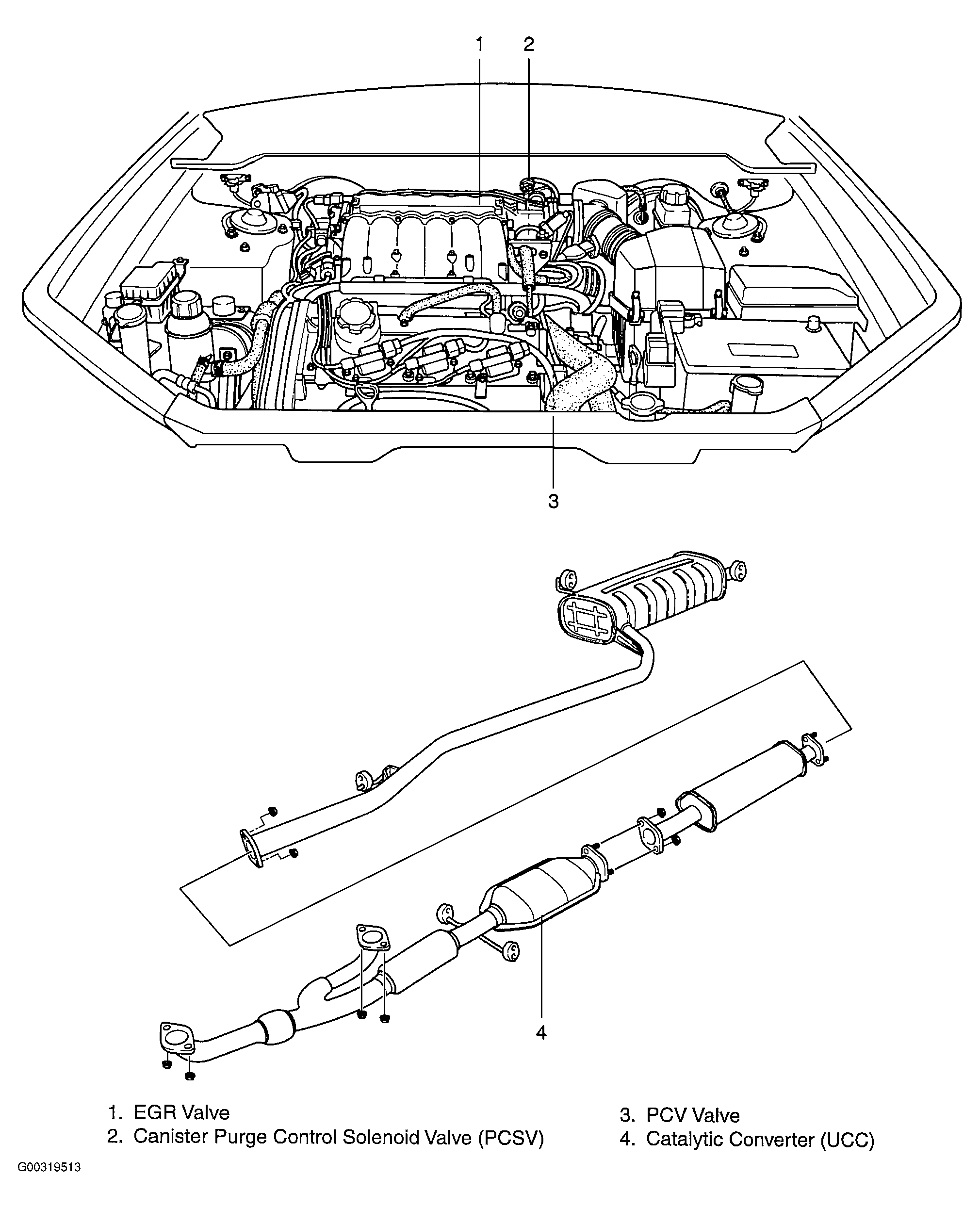

Fig 1: Identifying Component Locations
G00319513Courtesy of KIA MOTORS AMERICA, INC.

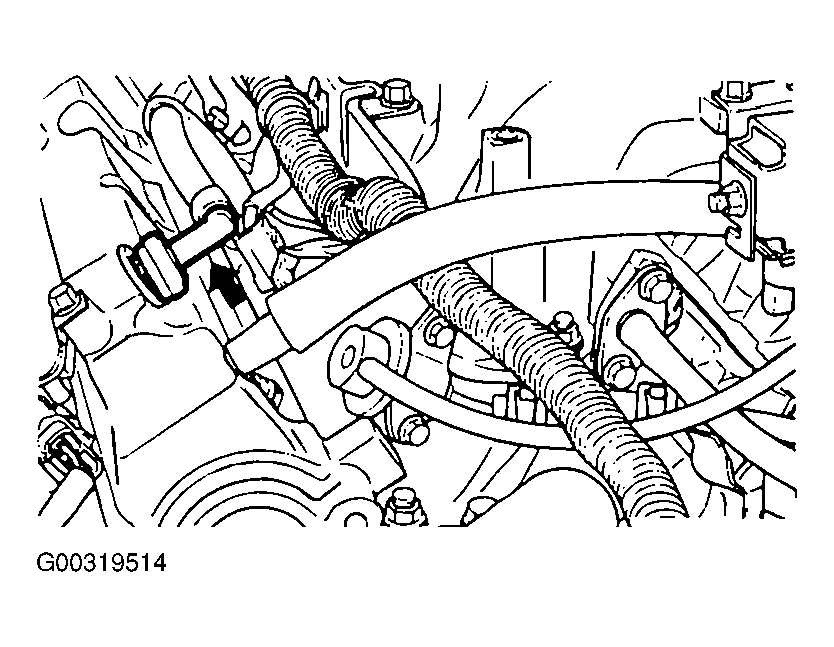

Fig 2: Identifying PCV Valve Location
G00319514Courtesy of KIA MOTORS AMERICA, INC.

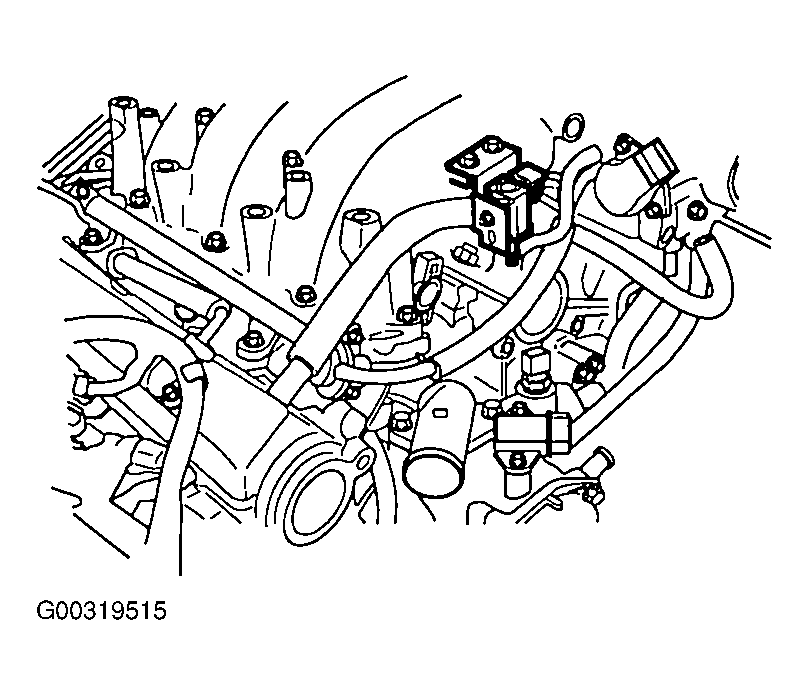

Fig 3: Identifying Purge Control Solenoid Valve Location (PCSV)
G00319515Courtesy of KIA MOTORS AMERICA, INC.

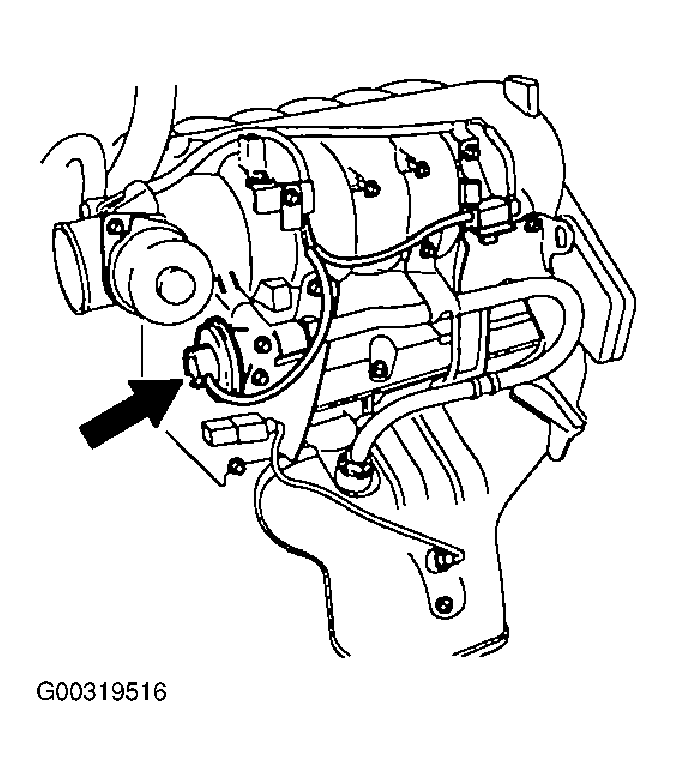

Fig 4: Identifying EGR Valve Location
G00319516Courtesy of KIA MOTORS AMERICA, INC.

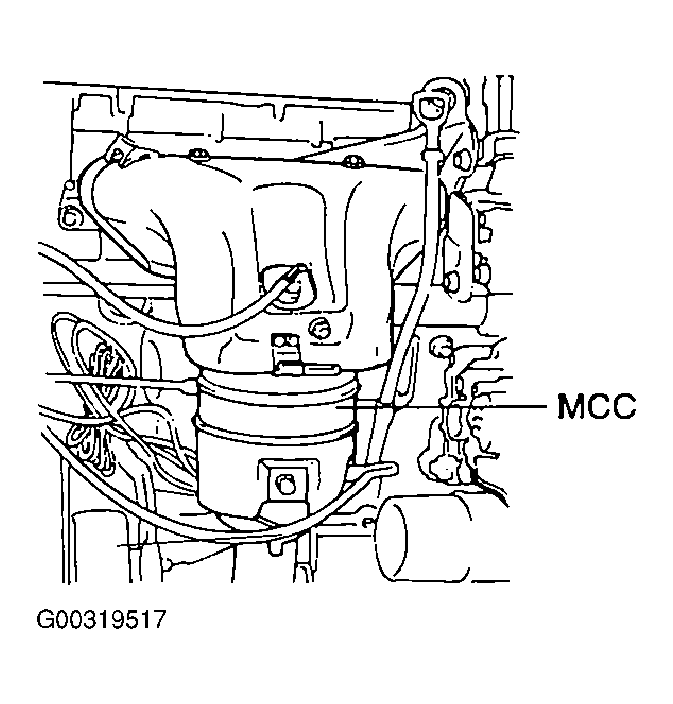

Fig 5: Identifying Catalytic Converter Location (MCC)
G00319517Courtesy of KIA MOTORS AMERICA, INC.

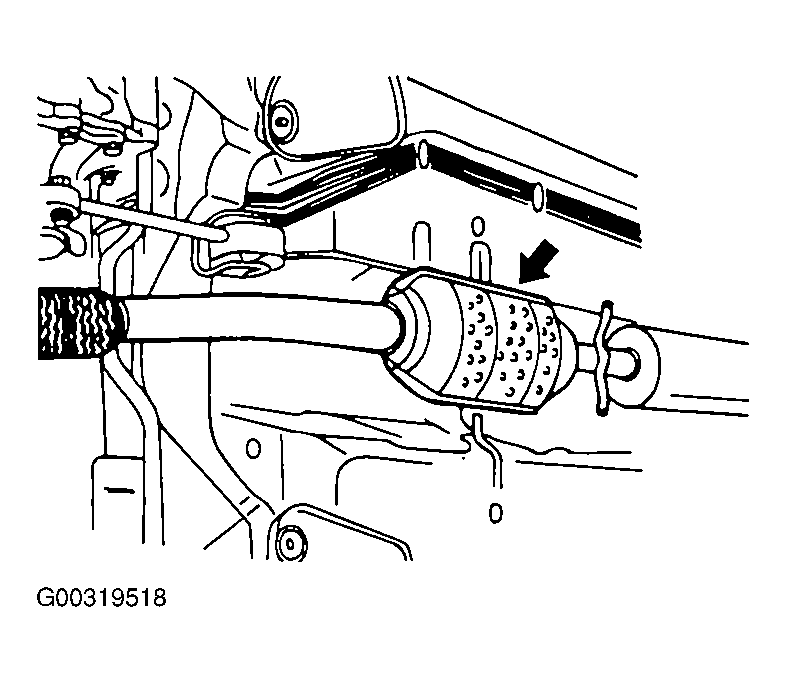

Fig 6: Identifying Catalytic Converter Location (UCC)
G00319518Courtesy of KIA MOTORS AMERICA, INC.

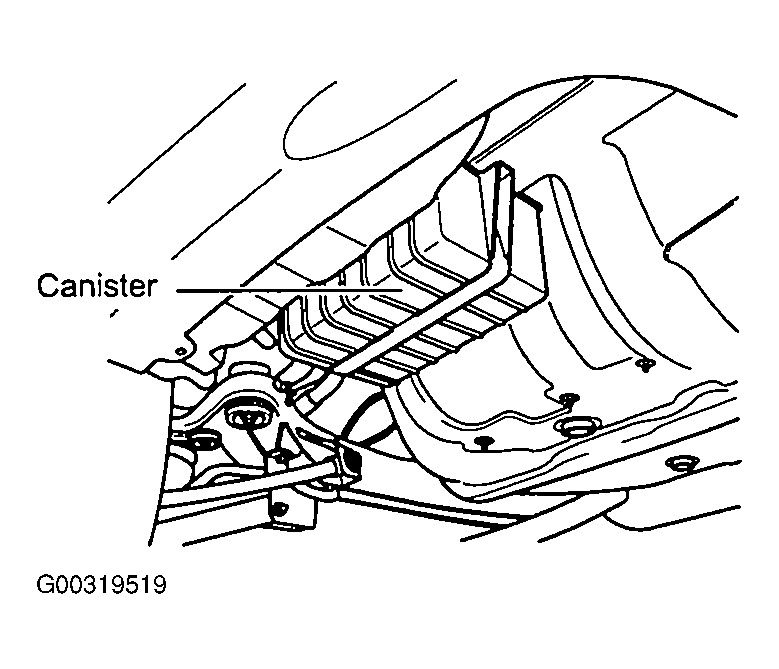

Fig 7: Identifying Canister Location
G00319519Courtesy of KIA MOTORS AMERICA, INC.

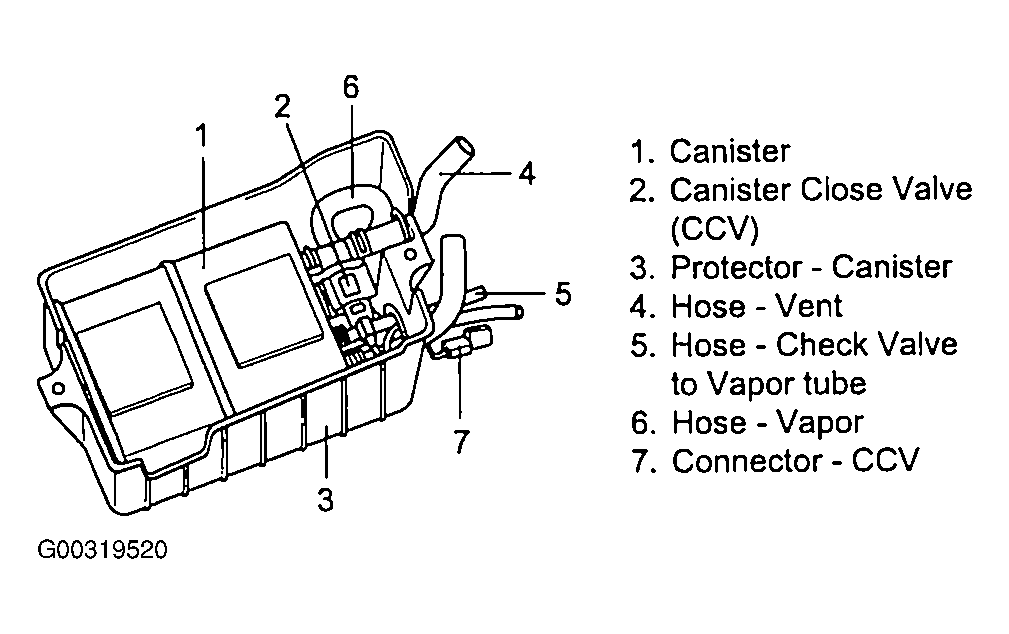

Fig 8: Identifying Canister Close Valve (CCV) Location
G00319520Courtesy of KIA MOTORS AMERICA, INC.
