Emission Control System: General: Components

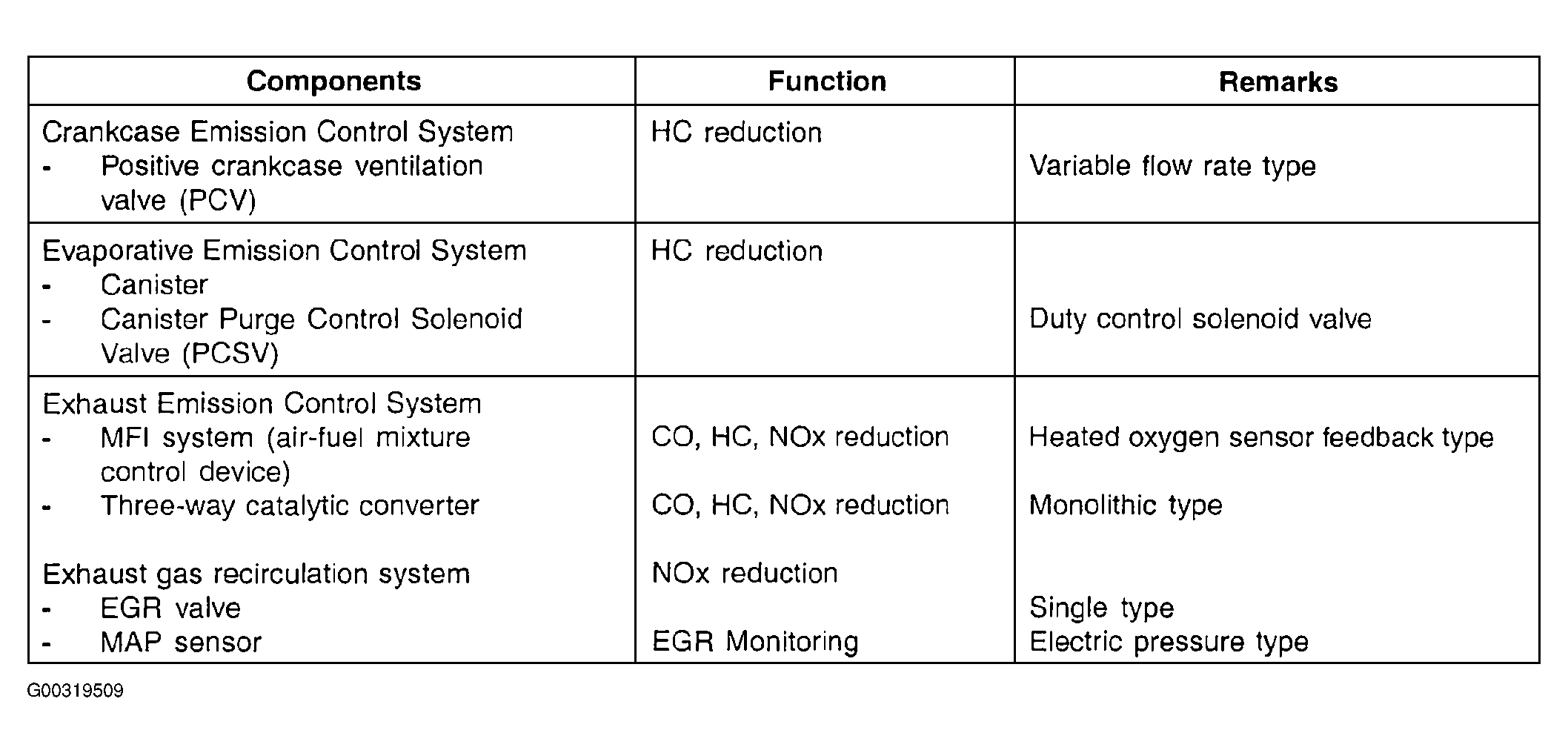

Fig 1: Component Function Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
