Operation Check

Turn the ignition switch to the OFF position.
Apply battery voltage to the fuel pump drive connector to check that the pump operates.
CAUTION: The fuel pump is an in-tank type and its operating sound is hard to hear without removing the fuel tank cap.

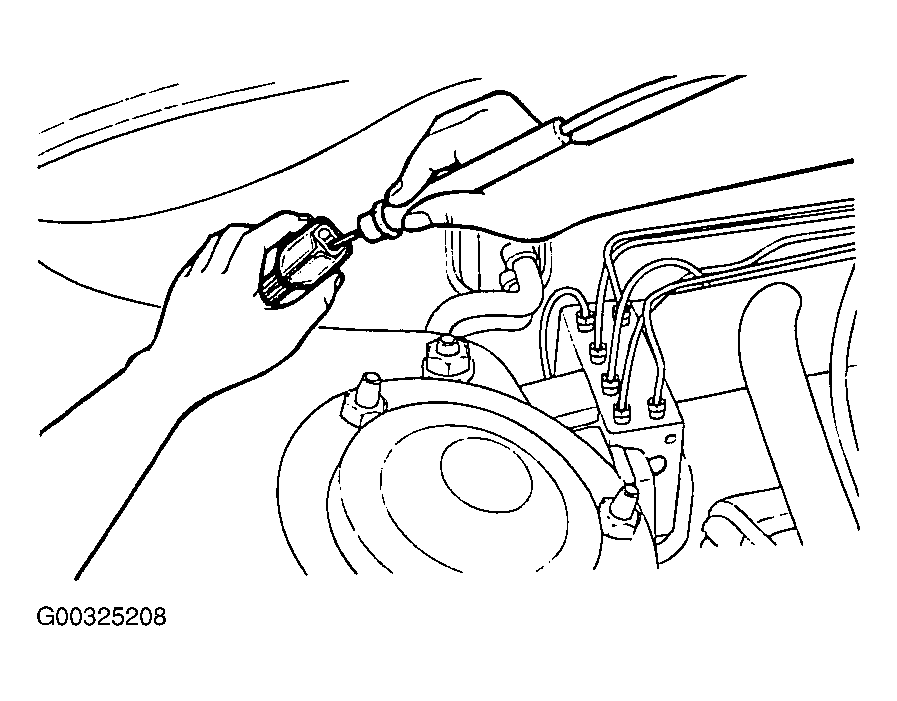

Fig 1: Testing Fuel Pump Operation
Courtesy of KIA MOTORS AMERICA, INC.
Pinch the hose to check that fuel pressure is felt.

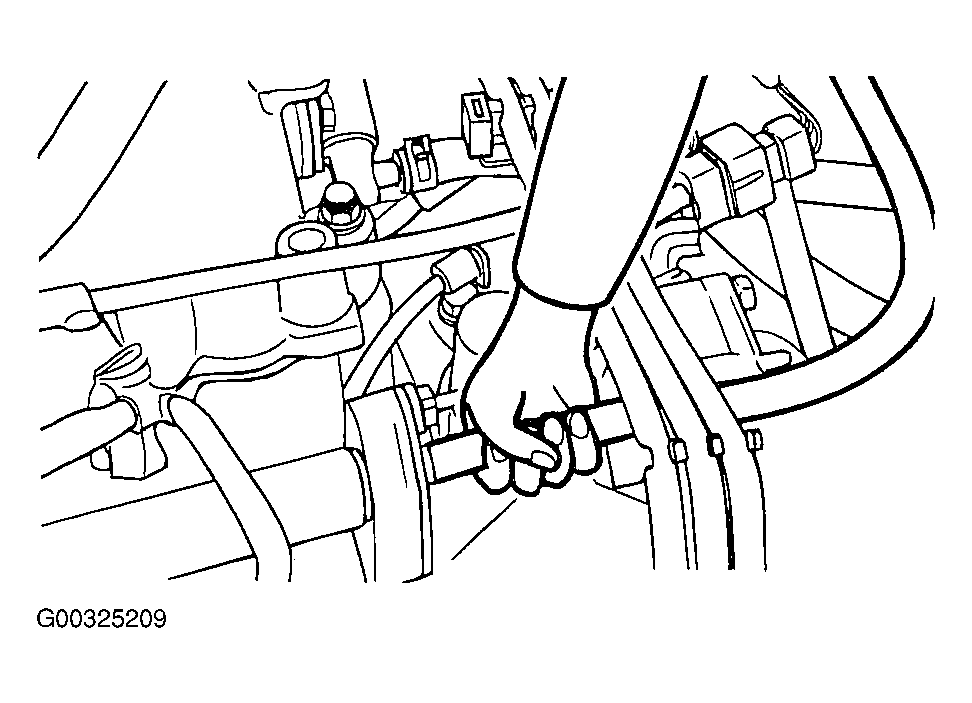

Fig 2: Checking For Fuel Pressure

Courtesy of KIA MOTORS AMERICA, INC.
