Engine Hesitates Or Accelerates Poorly

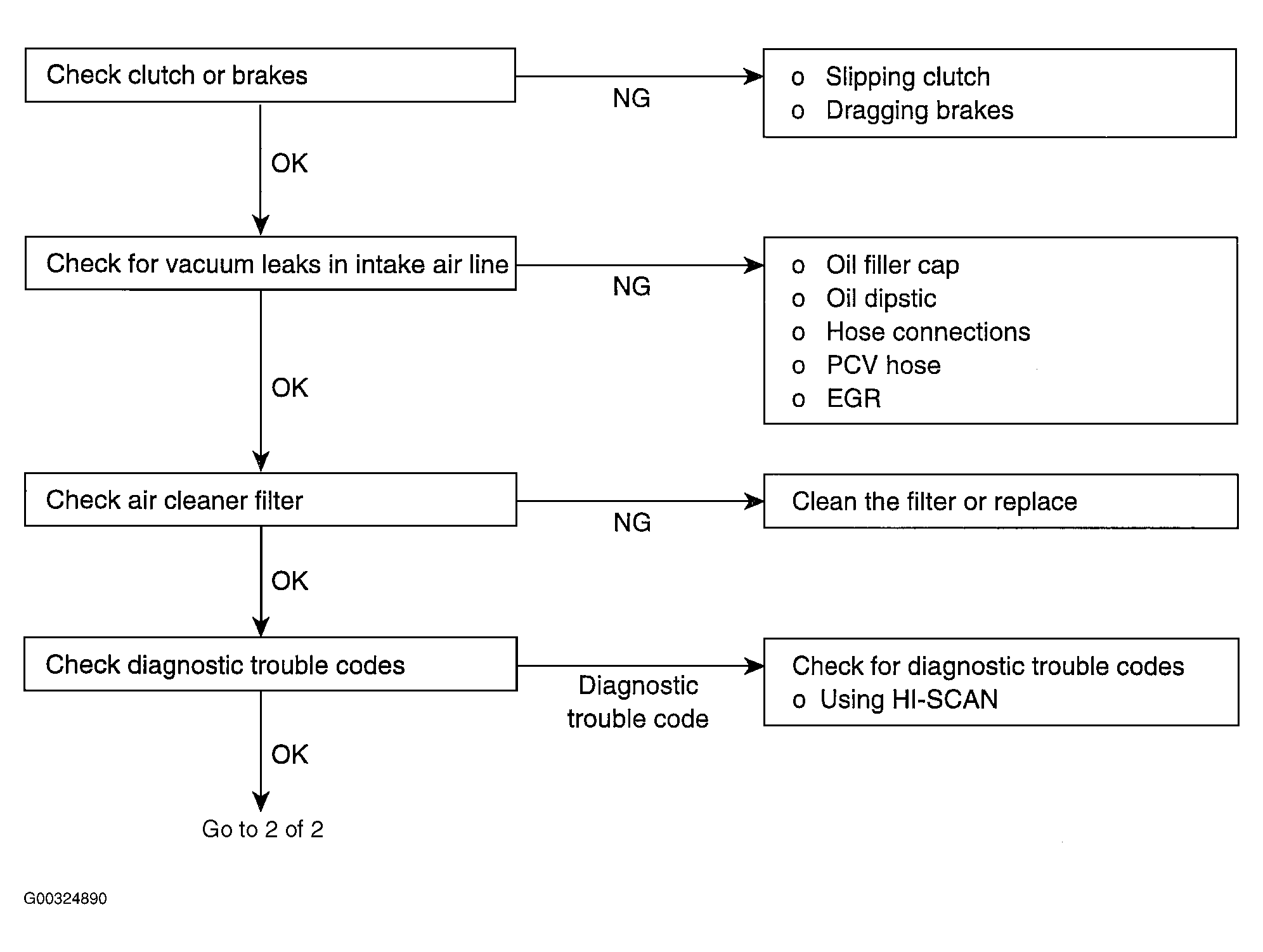

Fig 1: Engine Hesitates Or Accelerates Poorly Trouble Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

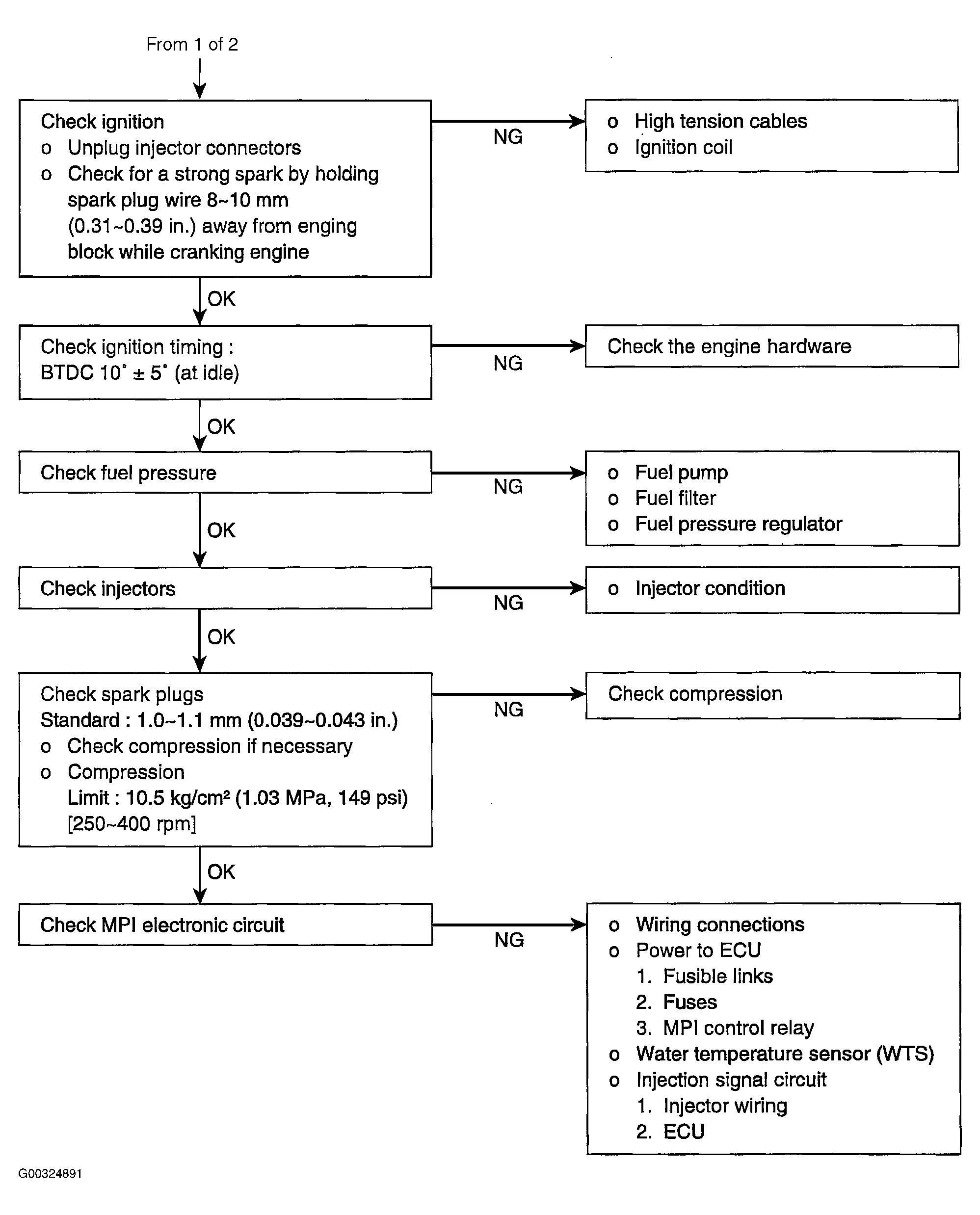

Fig 2: Engine Hesitates Or Accelerates Poorly Trouble Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
