Engine Will Not Start

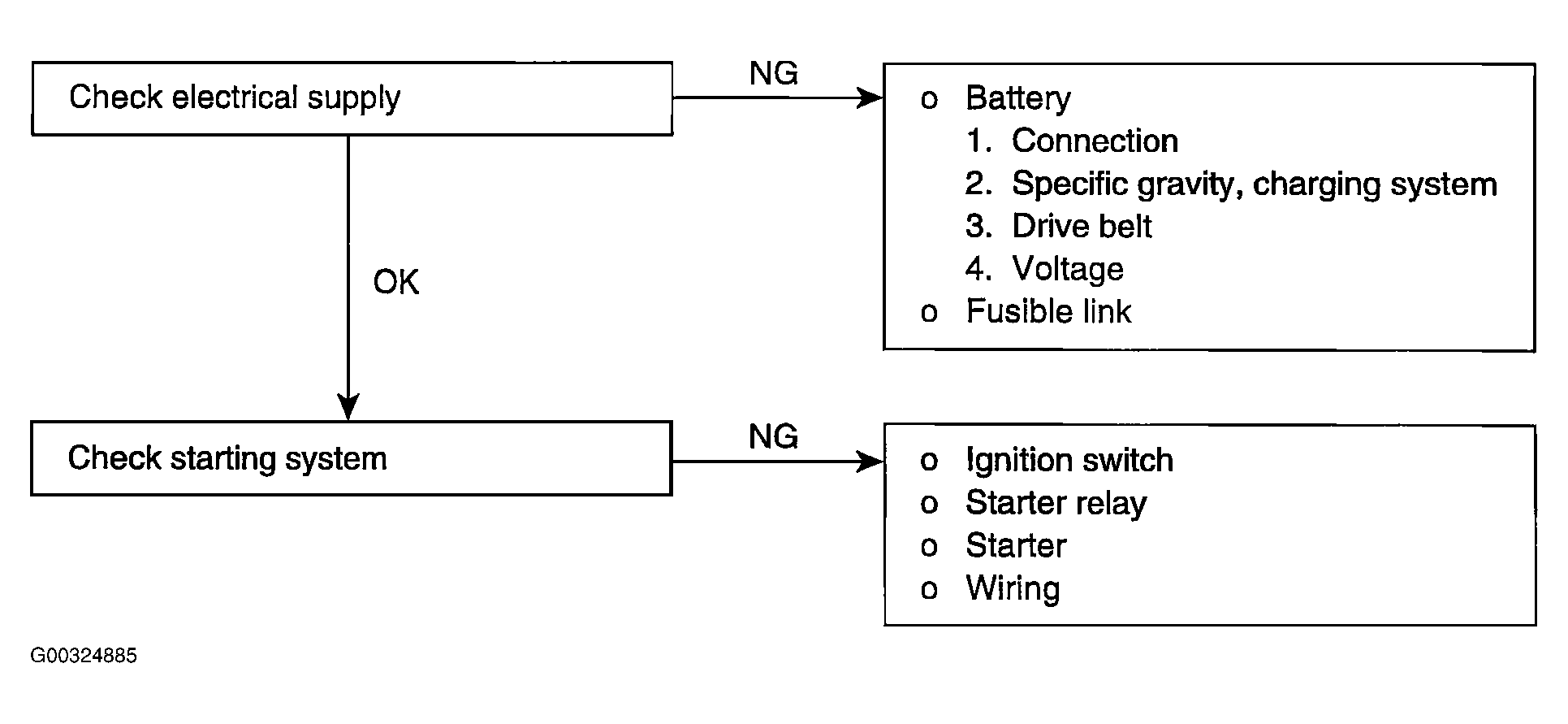

Fig 1: Engine Will Not Start Trouble Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
