Harness Inspection Procedures

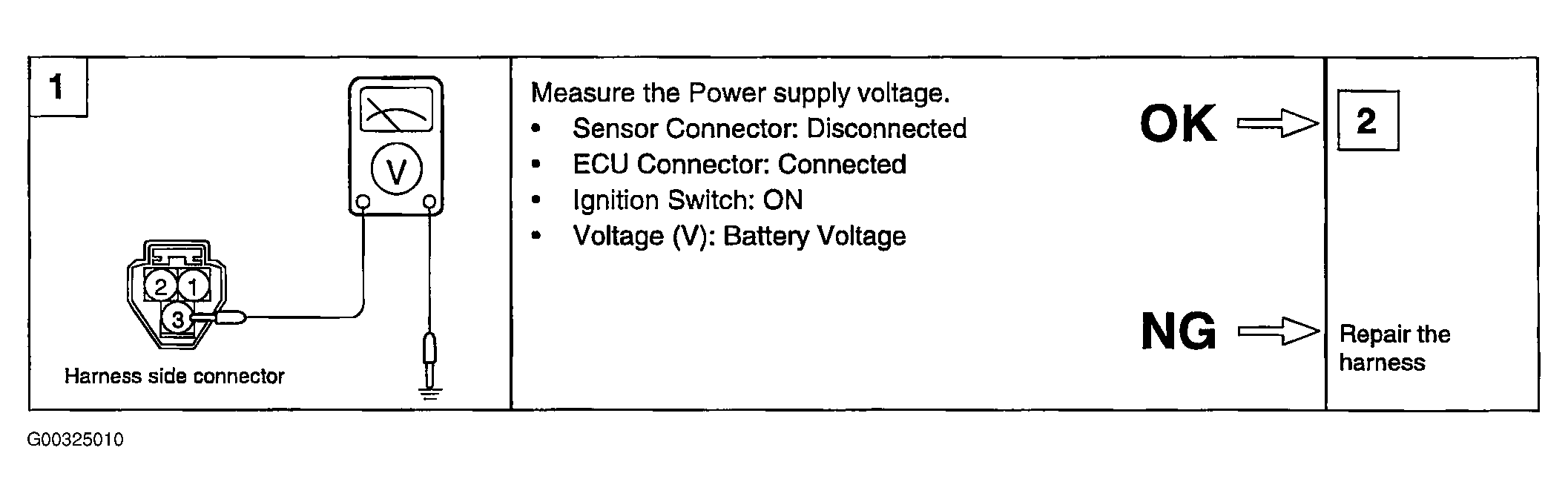

Fig 1: Illustrating CKP Harness Inspection Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

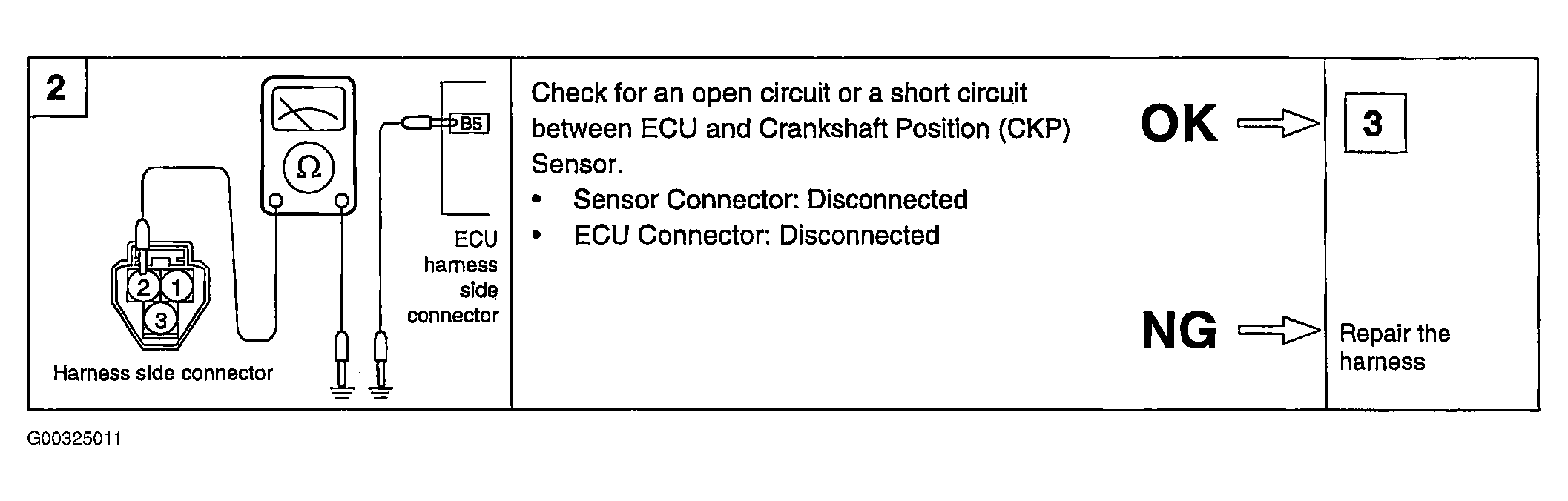

Fig 2: Illustrating CKP Harness Inspection Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

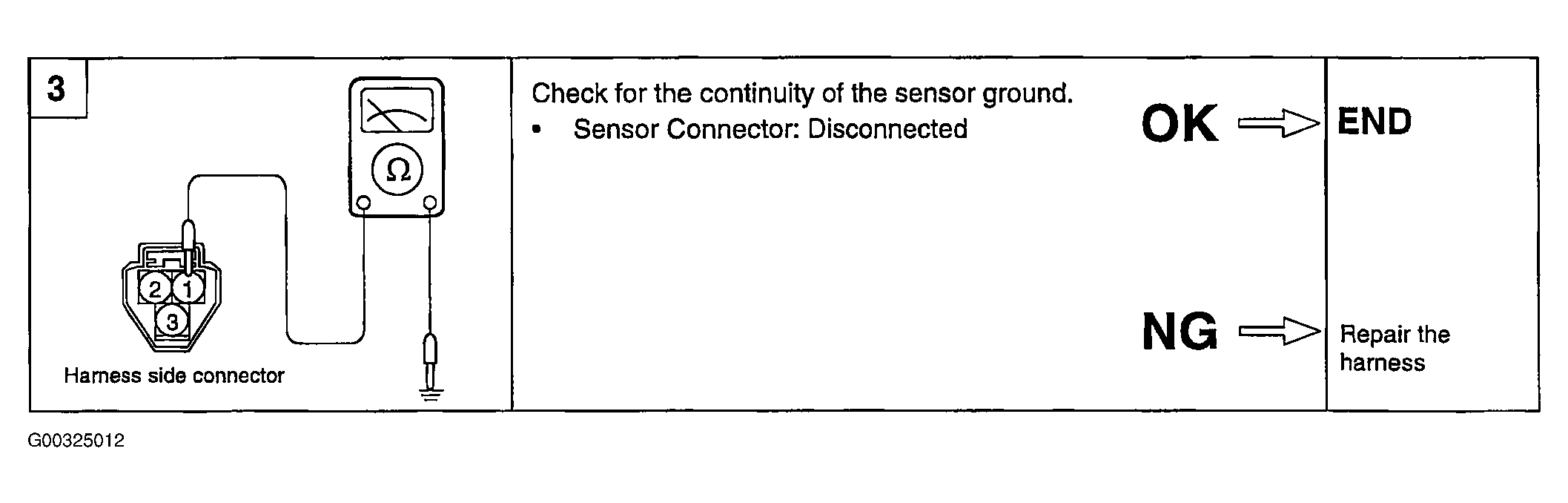

Fig 3: Illustrating CKP Harness Inspection Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
