Testing With Hi-Scan (Pro)

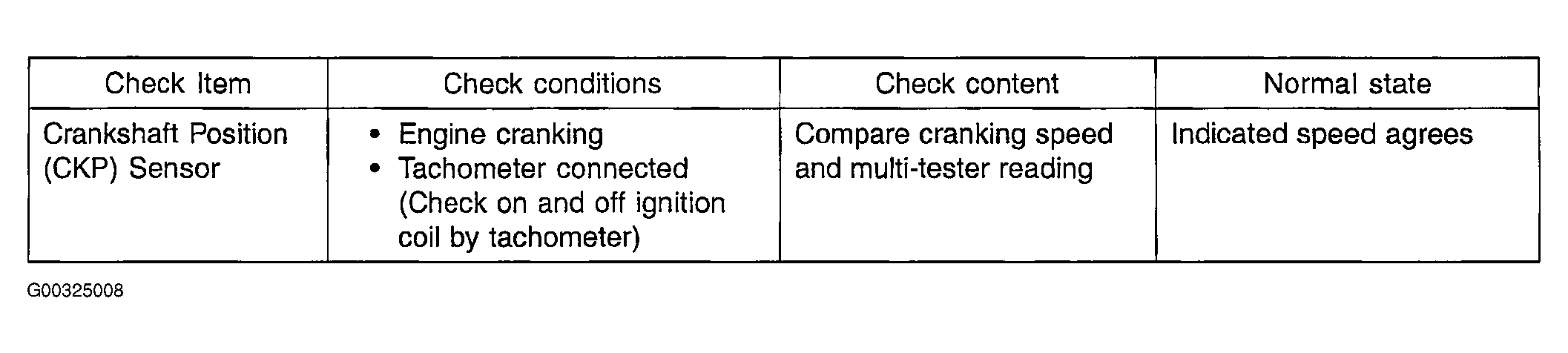

Fig 1: Testing CKP Sensor Chart (1 Of 2)
G00325008Courtesy of KIA MOTORS AMERICA, INC.

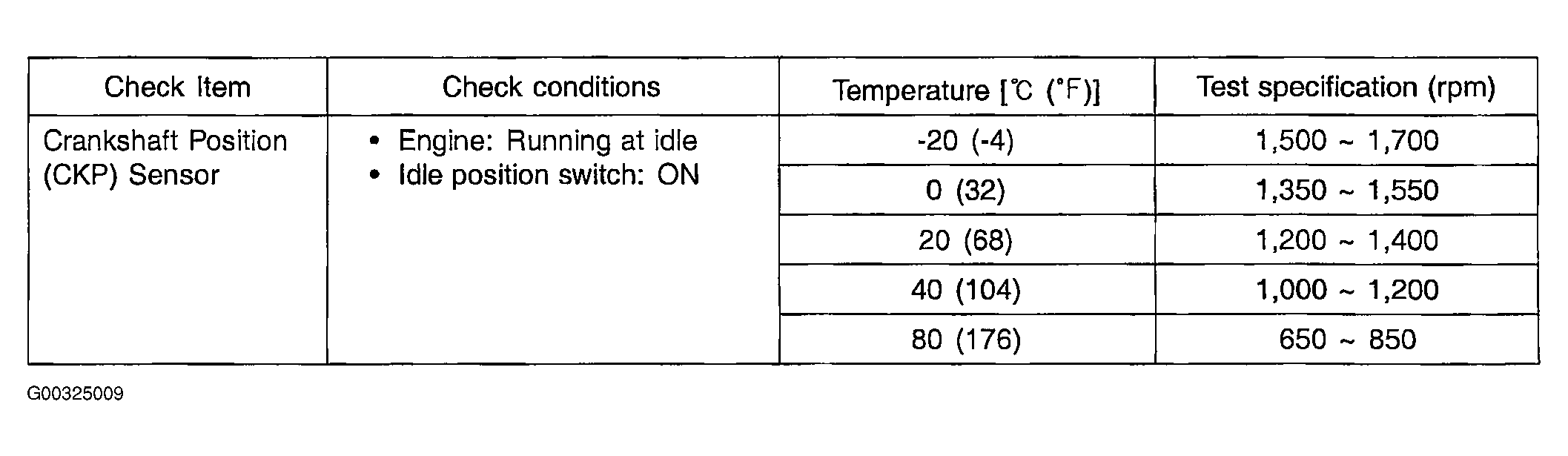

Fig 2: Testing CKP Sensor Chart (2 Of 2)
G00325009Courtesy of KIA MOTORS AMERICA, INC.
